FOSDEM video hw: TFP401 capture test boards for everyone! [Sep. 26th, 2019|04:05 am]
Luc Verhaegen
[Tags|, , , , , , , ]
[Current Location |Rumpelkammer]
[mood |Tired.]
[music |Nothing, for a change.]

Uwe finished soldering the remaining boards, and sent them to me before his vacation started. I added one connector that was still MIA earlier, and also ordered more lcds and tfp401 modules, and then tested the lot.

We now have the kit for 4 further test systems. 2 for the fosdem office, 2 for the openfest guys. Here's a picture of them all:

lime2 test boards ready to be shipped

Up top, two complete sets, with TFP401 module and LCD, those are for bulgaria. Then the bottom boards, and the tfp401 module are for the FOSDEM offic, where there's already one tfp401 module, and a ton of BPI LCDs. I will be shipping these out later today.

To add to that, i now have a second complete test setup myself.

Mind you, this is still our test setup, allowing us to work on all bits from the capture engine on downstream (video capture, kms display, h264 encoding). We will need our full setup with the ADV7611 to add HDMI audio to the mix. But 80-90% of the software and driver work can be done with the current test setup with tfp401 modules.

TFP401 EDID ROM

I have gone and flashed all the TFP401 modules with the tool i quickly threw together. I created a matching terminal cable to go from the banana-pi M1 to the edid connector on the board, and made one for Uwe and the FOSDEM office (as they both have a module present already).

It turns out that this rom is always writable, and that you could even do so through the hdmi connector. My. My.

Howto rework

Ever since our first successful capture, there has been a howto in the fosdem video hardware github wiki. I have now gone and walked through it again, and updated some bits and pieces.

Wait and see whether the others can make that work :)

Bulldozing the TFP401 backlight

The Adafruit tfp401 module gets quite warm, and especially the big diode in the backlight circuit seems to dissipate quite a lot of heat. It usually is too hot to touch.

A usb amp meter told me that the module was drawing 615mW when hdmi was active. So I went and ran most of the backlight circuit components from the board, and now we're drawing only 272mW. Nice!

A look into the box we will be replacing.

FOSDEMs Mark Vandenborre posted a picture of some video boxes attached to a 48 port switch.

FOSDEM slides boxes in action.

There are 58 of those today, so mentally multiply the pile under the switch by 10.

Marian Marinov from Openfest (who will be getting a test board soon) actually has a picture of the internals of one of the slides boxes on his site:

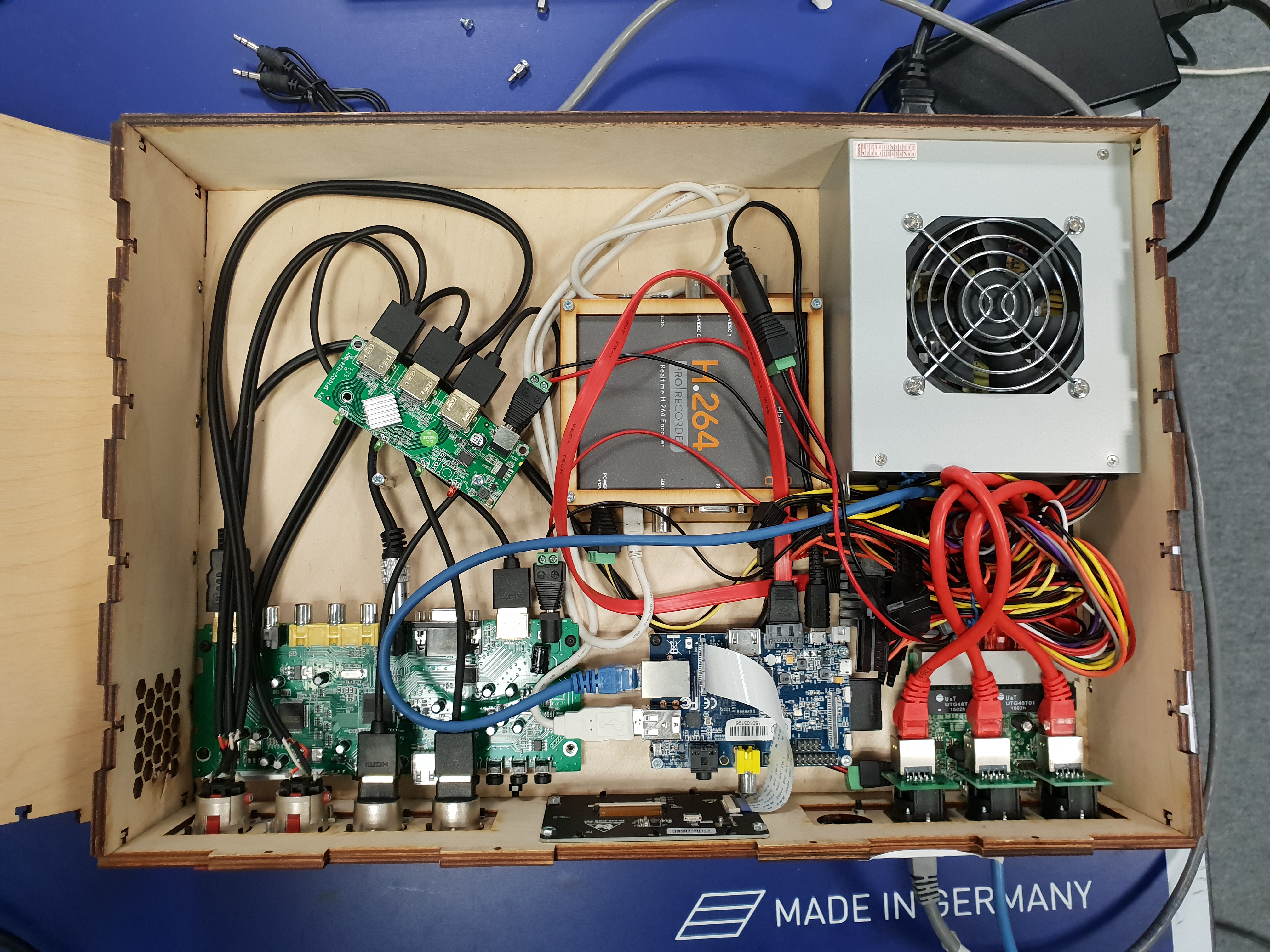

FOSDEM slides box internals.

This picture was probably made during openfest 2018, so this is from just before we rebuilt all 29 slides boxes. One change is that this slides box lacks the IR LED to control the scaler by playing pcm files :)

Left, you can see scaler (large green board) and the splitter (small green board). In the middle, from top to bottom, the hardware h264 encoder, the banana-pi, and the status LCD. Then there's an ATX power supply, then, hidden under the rats nest of cables, there's a small SSD, and then an ethernet switch.

Our current goal is to turn that into:
- 1 5V power supply
- 1 lime2 with ADV7611 daughterboard.
- keep the lcd.
- keep the 4 port switch.
- perhaps keep the SSD, or just store the local copy of the dump on the SD card (they are large and cheap now).

We would basically shrink everything to a quarter the size, and massively drop the cost and complexity of the hardware. And we get a lot of extra control in return as well.

Support

Thanks a lot to the guys who donated through paypal. Your support is much appreciated and was used on some soldering supplies.

If anyone wants to support this work, either drop me an email for larger donations if you have a VAT number, so i can produce a proper invoice. Or just use paypal for small donations :)

Next up

Sunxi H264 encoding is where it is at now, i will probably write up a quick and dirty cut down encoder for now, as february is approaching fast and there's a lot to do still.
linkpost comment

FOSDEMs bespoke video hardware and software. [Sep. 18th, 2019|04:08 am]
Luc Verhaegen
[Tags|, , , , , , , , , ]
[Current Location |Rumpelkammer]
[mood |tiredtired]
[music |Justus Koehncke - Timecode]

This is a picture of a very early test setup for the upcoming video boxes for FOSDEM.

Lime2 with test board, capturing 720p

The string of hardware in front of the display (my 4:3 projector analogue, attached over hdmi) is:
* A status LCD, showing the live capture in the background (with 40% opacity)
* An Olimex Lime2 (red board) with our test board on top (green board).
* A adafruit TFP401 hdmi to parallel RGB encoder board (blue board).

You can see the white hdmi cable running from the lime2 hdmi out to the monitor. This old monitor is my test "projector", the fact that it is 4:3 makes it a good test subject.

You can also see a black cable from the capture board to another blue board with a red led. This is a banana-pi M1 as this is the current SBC being used in the FOSDEM video boxes, and i had one lying around anyway, doing nothing. It spews out a test image.

What you are seeing here is live captured data at 1280x720@60Hz, displayed on the monitor, and in the background of the status LCD, with a 1 to 2 frame delay.

Here is a close-up of the status lcd

Video box status lcd, with live capture in the background.


The text and logos in front are just mockups, the text will of course be made dynamic, as otherwise it would not be much of a status display.

And here is a close-up of the 1280x1024 monitor:
Video box status lcd, with live capture in the background.

You will notice 5 16x16 blocks, one for each corner, and one smack-dab in the middle. They encode the position on screen in the B and G components, and the frame count in the R component.

The utility that is running on the lime2 board (fosdem-video-juggler) displays the captured frames on both the LCD and the monitor. This currently tests for all four corners for all 5 blocks.

At 1920x1080, a 24h run showed about 450 pixels being off. Those were all at the start of the frame (pixels 0,0 and 1,0), as this is where our temporary TFP401 board has known issues. This should be fixed when moving to an ADV7611 encoder.

The current setup, and the target resolution for FOSDEM, is 1280x720, (with a very specific modeline for the TFP401). Not a single pixel has been off in an almost 40h run. Not a single one in 8.6 million frames.

The starry-eyed plan

FOSDEM has 28 parallel tracks, all streamed out live. Almost 750 talks on two days, all streamed out live. Nobody does that, period.

What drives this, next to a lot of blood, sweat and tears, are 28 speaker/slides video boxes, and 28 camera video boxes, plus spares. They store the capture, and stream it over the network to be re-encoded on one refurbished laptop per track, which then streams out live. The videobox stream also hits servers, marshalled in for final encoding after devroom manager/speaker review. The livestreams are just a few minutes behind; when devrooms are full, people are watching the livestream just outside the closed off devroom. As a devroom manager, the review experience is pretty slick, with review emails being received minutes after talks are over and videos being done in the next hour or so after that.

The video boxes themselves have an ingenious mix of an hdmi scaler, an active hdmi splitter, a hardware h.264 encoder (don't ask), a banana pi m1 (don't ask), an small SSD, an ethernet switch, and an atx PSU. All contained in big, heavy, laser cut wooden box. It's full of smart choices, and it does what it should do, but it is far from ideal.

There's actual quite a few brilliant bits going on in there. Like the IR LED that controls the hdmi scalers OSD menu. That LED is connected to the headphone jack of the banana pi, and Gerry has hacked up PCM files to be able to set scaling resolutions. Playing audio to step through an OSD menu! Gerry even 3D printed special small brackets, that fit in a usb connector, to hold the IR LED in place. Insane! Brilliant! But a sign that this whole setup is far from ideal.

So last november, during the video team meetup, we mused about a better solution: If we get HDMI and audio captured straight by the Allwinner SoC, then we can drive the projector directly from the HDMI out, and use the on-board h.264 encoder to convert the captured data into a stream that can be sent out over the network. This would give us full control over all aspects of video capture, display and encoding, and the whole thing would be done in OSHW, with full open source software (and mainline support). Plus, the whole thing would be a lot cheaper, a lot smaller, and thus easier to handle, and we would be able to have a ton of hot spares around.

Hashing it out

During the event, in the rare bits of free time, we were able to further discuss this plan. We also had a chat with Tsvetan from Olimex, another big fan of FOSDEM, as to what could be done for producing the resulting hardware, what restrictions there are, how much lead time would be needed etc.

Then, on monday, Egbert Eich, Uwe bonnes and i had our usual "we've been thrown out of our hotels, but still have a few hours to kill before the ICE drives us back"-brunch. When i spoke about the plan, Uwes face lighted up and he started to ask all sorts of questions. Designing and prototyping electronics is his day job at the university of Darmstadt, and he offered to design and even prototype the necessary daughterboard. We were in business!

We decided to stick with the known and trusted Allwinner A20, with its extensive mainline support thanks to the large linux-sunxi community.

For the SBC, we quickly settled on the Olimex Lime2, as it just happened to expose all the pins we needed. Namely, LCD0, CSI1 (Camera Sensor Interface, and most certainly not MIPI-CSI, thanks Allwinner), I2S input and some I2C and interrupt lines. As are most things Olimex, it's fully OSHW. A quick email to Tsvetan from Olimex, and we had ourselves a small pile of Lime2 boards and supporting materials.

After a bit of back and forth, we chose the Analog Devices ADV7611 for a decoder chip, an actual HDMI to parallel RGB + I2S decoder. This is a much more intelligent and powerful converter than the rather dumb (no runtime configuration), and much older, TFP401, which actually is a DVI decoder. As an added bonus, Analog Devices is also a big open source backer, and the ADV7611 has fully open documentation.

Next to FOSDEM, Uwe also makes a point of visiting Embedded World here in Nuernberg. So just 2 weeks after FOSDEM, Uwe and I were able to do our first bit of napkin engineering in a local pub here :)

Then, another stroke of luck... While googling for more information about the ADV7611, i stumbled over the Videobrick project. Back in 2014/2015, when i was not paying too much attention to linux-sunxi, Georg Ottinger and Georg Lippitsch had the same idea, and reached the same conclusions (olimex lime1, adv7611). We got in contact, and Georg (Ottinger ;)) even sent us his test board. They had a working test board, but could not get the timing right, and tried to work around it with a hw hack. Real life also kicked in, and the project ended up losing steam. We will re-use their schematic as the basis for our work, as they also made that OSHW, so their work will definitely live on :)

In late April, FOSDEM core organizers Gerry and Mark, and Uwe and I met up in Frankfurt, and we hashed out some further details. Now the plan included an intermediate board, which connects to the rudimentary TFP401 module, so we could get some software and driver work started, and verify the functionality of some hw blocks.

Back then, i was still worried about the bandwidth limitations of the Allwinner CSI1 engine and the parallel RGB bus. If we could not reliably get 1280x720@60Hz, with a reasonable colour space, then the A20 and probably the whole project was not viable.

720p only?

Mentioning 1280x720@60Hz probably got you worried now. Why not full HD? Well, 1280x720 is plenty for our use-case.

Speakers are liable to make very poor slide design choices. Sometimes slides are totally not suited for display on projectors, and text often can not be read across the room. FOSDEM also does not have the budget to rent top of the line projection equipment for every track, we have to use what is present at the university. So 720p already gives speakers far too many pixels to play with.

Then, the sony cameras that FOSDEM rents (FOSDEM owns one itself), for filming the speaker from across the room, also do 1280x720, but at 30/25Hz. So 720p is what we need.

Having said that, we have in the meantime confirmed that the A20 can reliably handle full HD at 60Hz at full 24bit colour. With one gotcha... This is starting to eat into our available bus and dram bandwidth, and the bursty nature of both capture and the scaler on each display pipe make display glitchy with the current memory/bus/engine timing. So while slides will be 720p, we can easily support FullHD for the camera as there is no projector attached there, or if we are not scaling.

Intermediate setup

Shortly after our Frankfurt meetup, Uwe designed and made the test boards. As said, this test board and the TFP401 module is just temporary hardware to enable us to get the capture and KMS drivers in order, and to get started on h.264 encoding. The h.264 encoding was reverse engineered as part of the cedrus project (Jens Kuske, Manuel Braga, Andreas Baierl) but no driver is present for this yet, so there's quite a bit of work there still.

The TFP401 is pretty picky when it comes to supported modes. It often messes up the start of a frame; a fact that i first noticed on a Olimex 10" LCD that i connected to it to figure out signal routing. The fact that our capture engine does not know about Display Enable also does not make things any better. You can deduce from the heatsink in the picture that that TFP401 also does become warm. All that does not matter for the final solution, as we will use the ADV7611 anyway.

Current status

We currently have the banana pi preloading a specific EDID block with a TFP401 specific modeline. And then we have our CSI1 driver preset its values to work with the TFP401 correctly (we will get that info from the ADV7611 in future). With those settings, we do have CSI capture running reliably, and we are showing it reliably on both the status LCD and the "projector". Not a single pixel has been lost in a ~40h run, with about 21.6TB of raw pixel data transferred, or 8.6 million frames (i then lost 3 frames, as i logged into to bpi and apt-get upgraded, wait and see how we work around load issues and KMS in future).

The allwinner A20 capture engine has parallel RGB (full 24bit mind you), a pixelclock, and two sync signals. It does not have a display enable line, and needs to be told how many clocks behind sync the data starts. This is the source of confusion for the videobrick guys, and forces us to work around the TFP401s limitations.

Another quirk of the design of the capture engine is that it uses one FIFO per channel, and each FIFO outputs to a separate memory address, with no interleaving possible. This makes our full 24bit capture a very unique planar RGB888, or R8G8B8 as i have been calling it. This is not as big an issue as you would think. Any colour conversion engine (we have 2 per display pipe, and at least one in the 2d engine) can do a planar to packed conversion for all of the planar YUV formats out there. The trick is to use an identity matrix for the actual colour conversion, so that the subpixels values go through unchanged.

But it was no surprise that neither V4L2 nor DRM/KMS currently know about R8B8G8 though :)

What you see working above already took all sorts of fixes all over the sunxi mainline code. I have collected about 80 patches against the 5.2 mainline kernel. Some are very board specfic, some are new functionality (CSI1, sprites as kms planes), but there are also some fixes to DRM/KMS, and some rather fundamental improvements to dual display support in the sun4i kms driver (like not driving our poor LCD at 154Hz). A handful of those are ready for immediate submission to mainline, and the rest will be sent upstream in time.

I've also learned that "atomic KMS" is not really atomic, and instead is "batched" (oh, if only i had been allowed to follow my nokia team to intel back in 2011). This forces our userspace application to be a highly threaded affair.

The fundamental premise of our userspace application is that we want to keep all buffers in flight. At no point should raw buffers be duplicated in memory, let alone hit storage. Only the h.264 encoded stream should be sent to disk and network. This explains the name of this userspace application; "juggler". We also never want to touch pixel data with a CPU core, or even the GPU, we want the existing specialized hardware blocks to take care of all that (display, 2d engine, h.264 encoder), as they can do so most efficiently.

This juggler currently captures a frame through V4l2, then display that buffer on the "projector" and on the status LCD, as overlays or "planes", at the earliest possible time. It then also tests the captured image for those 5 marker blocks, which is how we know that we are pixel perfect.

There is a one to two frame delay between hdmi-input and hdmi-output. One frame as we need to wait for the capture engine to complete the capture of a frame, and up to one frame until the target display is done scanning out the previous frame. While we could start guessing where the capture engine is in a frame, and could tie that to the line counter in the display engine, it is just not worth it. 1-2 frames, or a 16.67-33.33ms delay is more than good enough for our purposes. The delay on the h.264 stream is only constrained by the amount of RAM we have, as we do want to release buffers back to the capture engine at one point ;)

Current TODO list.

Since we have full r8g8b8 input, i will have to push said buffer through the 2d engine (2d engines are easy, just like overlays), so that we can feed NV12 to the h.264 encoder. This work will be started now.

I also still need to go write up hdmi hotplug, both on the input (there's an interrupt for that) as on the output side.

The status text on the status LCD is currently a static png, as it is just a mockup. This too will become dynamic. The logo will become configurable. This, and other non-driver work, can hopefully be done by some of the others involved with FOSDEM video.

Once Uwe is back from vacation, he will start work on the first version of the full ADV7611 daughterboard. Once we have that prototyped, we need to go tie the ADV7611 into the CSI1 driver, and provide a solid pair of EDID blocks, and we need to tie I2S captured audio into the h.264 stream as well.

Lots of highly important work to be done in the next 4 months.

Where is this going?

We should actually not get ahead of ourselves too much. We still need to get close to not losing a single pixel at FOSDEM 2020. That's already a pretty heady goal.

Then, for FOSDEM2021, we will work towards XLR audio in and output, and on only needing a single ethernet cable routed across a room (syncing up audio between camera and speaker boxes, instead of centralizing audio at the camera). We will add a 2.54mm pitch connector on top of the current hdmi capture daughterboard to support that audio daughterboard.

Beyond that, we might want to rework this multi-board affair to make an all-in-one board with the gigabit ethernet phy replaced with a switch chip, for a complete, single board OSHW solution. If we then tie in a small li-ion battery, we might be able to live without power for an hour or so. One could even imagine overflow rooms, where the stream of one video box is shown on another video box, all using the same hw and infrastructure.

All this for just FOSDEM?


There seems to be a lot of interest from several open source and hacker conferences. The core FOSDEM organizers are in contact with CCC and debconf over voctomix, and they also went to FOSSAsia and Froscon. Two other crucial volunteers, Vasil and Marian, are core organizers of Sofia's openFest and Plovdivs tuxcon, and they use the existing video boxes already.

So unless we hit a wall somewhere, this hardware, with the associated driver support, userspace application, and all the rest of the FOSDEM video infrastructure will likely hit an open source or hacker conference near you in the next few years.

Each conference is different though, and this is where complete openness, both on the hardware side, and on all of the software solutions needed for this, comes in. The hope is that the cheap hardware will just be present with the organization of each conference, and that just some configuration needs to happen for this specific conference to have reliable capture and streaming, with minimal effort.

Another possible use of this hardware, and especially the associated driver support, is, is of course a generic streaming solution, which is open source and dependable and configurable. It is much smarter to work with this hardware than to try to reverse engineer the IT9919 style devices for instance (usually known as HDMI extenders).

Then, with the openness of the ADV7611, and the more extensive debugfs support that i fear it is bound to grow soon, this hardware will also allow for automated display driver testing. Well, at least up to 1080p60Hz HDMI 1.4a. There actually was a talk in my devroom about this a while ago (which talked about one of those hdmi extenders).

So what's the budget for this?

Nothing.

FOSDEM is free to attend, and has a tiny budget. The biggest free/open source software conference on the planet, with their mad streaming infrastructure, spends less per visitor than said visitor will spend on public transportation in brussels over the weekend. Yes, if you take a cab from the city center to the venue, once, you will already have spent way more than the budget that FOSDEM has allocated for you.

FOSDEM is a full volunteer organization, nobody is paid to work on FOSDEM, not even the core organizers. Some of their budget comes from corporate sponsors (with a limit on what they can spend), visitors donating at the event, and part of the revenue of the beer event. This is what makes it possible for FOSDEM to exist as it does, independent of large corporate sponsors who then would want a controlling stake. This is what makes FOSDEM as grass roots and real as it is. This is why FOSDEM is that great, and also, this is why FOSDEM has endured.

The flip side of that is that crucial work like this cannot be directly supported. And neither should it be, as such a thing would quickly ruin FOSDEM, as then politics takes hold and bickering over money starts. I do get to invoice the hardware i needed to buy for this, but between Olimex' support, and the limited bits that you see there, that's not exactly breaking the bank ;)

With the brutal timeline we have though, it is near impossible for me, a self-employed consultant, to take in paid work for the next few months. Even though recruiting season is upon us again, i cannot realistically accept work at this time, not without killing this project in its tracks. If i do not put in the time now, this whole thing is just not going to happen. We've now gone deep enough into this rabbit hole that there is no way back, but there is a lot of work to be done still.

Over the past few months I have had to field a few questions about this undertaking. Statements like "why don't you turn this into a product you can sell" are very common. And my answer is always the same; Neither selling the hardware, nor selling the service, nor selling the whole solution is a viable business. Even if we did not do OSHW, the hardware is easily duplicated, so there is no chance for any real revenue let alone margin there. Selling a complete solution or trying to run it as a service, that quickly devolves into a team of people travelling the globe for two times 4 months a year (conference season). That means carting people and hardware around the globe, dealing with customs, fixing and working around endless network issues, adjusting to individual conferences needs as to what the graphics on the streams should look like, then dealing with stream post production for weeks after each event. That's not going to help anyone or anything either.

The only way for this to work is for the video capture hardware, the driver support, the "juggler", and the associated streaming infrastructure to be completely open.

We will only do a limited run of this hardware, to cover our own needs, but the hardware is and will remain OSHW, and anyone should be able to pay a company like Olimex to make another batch. The software is all GPLv2 (u-boot/kernel) and GPLv3 (juggler). This will simply become a tool that conference organizers can deploy easily and adjust as needed, but this also makes conferences responsible for their own captures.

This does mean that the time spent on writing and fixing drivers, writing the juggler tool, and designing the hw, all cannot be directly remunerated in a reasonable fashion.

Having said that, if you wish to support this work, i will happily accept paypal donations (at libv at skynet dot be). If you have a VAT number, and wish to donate a larger amount, i can provide proper invoices for my time. Just throw me an email!

This would not be a direct donation to FOSDEM though, and i am not a core FOSDEM organizer, nor do i speak for the FOSDEM organization. I am just a volunteer who has been writing graphics drivers for the past 16 years, who is, first and foremost, a devroom manager (since 2006). I am "simply" the guy who provides a solution to this problem and who makes this new hardware work. You will however be indirectly helping FOSDEM, and probably every other free/open source/hacked conference out there.

Lot's of work ahead though. I will keep you posted when we hit our next milestones, hopefully with a less humongous blog entry :)
link1 comment|post comment

Flashing our way to polaris. [Oct. 22nd, 2018|03:48 pm]
Luc Verhaegen
[Tags|, , , , , , , , , , , , , , ]
[Current Location |Rumpelkammer]
[music |Kyuss - Whitewater]

I have just added Sea Island support to flashrom. This puts the R600 style SPI interface behind a pair of indexed registers, but otherwise is highly compatible.

While only tested on the first Sea-Island type SPI interface (Bonaire), support should work for everything up to and including Polaris, for a grand total of 240 devices supported today.

Bonaire was the introduction of this relocated register interface. Sadly there was an issue with this chip. There are 256bytes of SPI data registers, but registers 0xd8 through 0xE8 shifted up 0x10. There's an ugly work-around for that, but it works fine and the bit of extra cpu overhead is not an issue with a slowish interface like SPI. This shift was fixed for the next ASIC though, and Hawaii no longer needs that workaround.

As for my ordered hw...
* I still need to get a Tahiti/Hainan or Oland. So there are a few dozen Southern Islands cards to be added still.
* The HD4650 i ordered turned out to be an HD2600. The seller mistook one club3d card for another with the same passive cooler. He did not bother to even compare the connectors :(
* I did get a passive X300 (rv370) and X1300 (rv515) for which i will start REing now, so that i can extend flashrom support to all PCIE devices.

As always, the code is available here.
linkpost comment

Pleased to flash you, hope you change my name... [Oct. 17th, 2018|12:49 am]
Luc Verhaegen
[Tags|, , , , , , , , , , , , , ]
[Current Location |Rumpelkammer]
[music |The Rolling Stones - Picture Disc 08 - Sympathy for the devil (1979)]

Remember that time when ATI employees tried to re-market their atomBIOS bytecode as scripts?

You probably don't, it was a decade ago.

It was in the middle of the RadeonHD versus -ati shitstorm. One was the original, written in actual C poking display registers directly, and depending on ATIs atomBIOS as little as practical. The other was the fork, implementing everything the fglrx way, and they stopped at nothing to smear the real code (including vandalizing the radeonhd repo, _after_ radeonhd had died). It was AMD teamed with SUSE versus ATI teamed with redhat. From a software and community point of view, it was real open source code and the goal of technical excellence, versus spite and grandstanding. From an AMD versus ATI point of view, it was trying to gain control over and clean up a broken company, and limiting the damage to server sales, versus fighting the new "corporate" overlord and people fighting to keep their old (ostensibly wrong) ways of working.

The RadeonHD project started april 2007, when we started working on a proposal for an open source driver. AMD management loved it, and supported innovations such as fully free docs (the first time since 3dfx went bust in 1999), and we started coding in July 2007. This is also when we were introduced to John Bridgman. At SUSE, we were told that John Bridgman was there to provide us with the information we needed, and to make sure that the required information would go through legal and be documented in public register documents. As an ATI employee, he had previously been tasked by AMD to provide working documentation infrastructure inside ATI (or bring one into existence?). From the very start, John Bridgman was underhandedly working on slowly killing the RadeonHD project. First by endlessly stalling and telling a different lie every week about why he did not manage to get us information this time round either. Later, when the RadeonHD driver did make it out to the public, by playing a very clear double game, specifically by supporting a competing driver project (which did things the ATI way) and publicly deriding or understating the role of the AMD backed SUSE project.

In November 2007, John Bridgman hired Alex Deucher, a supposed open source developer and x.org community member. While the level of support Bridgman had from his own ATI management is unclear to me, to AMD management he claimed that Alex was only there to help out the AMD sponsored project (again, the one with real code, and public docs), and that Alex was only working on the competing driver in his spare time (yeah right!). Let's just say that John slowly "softened" his claim there over time, as this is how one cooks a frog, and Mr Bridgman is an expert on cooking frogs.

One particularly curious instance occurred in January 2008, when John and Alex started to "communicate" differently about atomBIOS, specifically by consistently referring to it as a set of "scripts". You can see one shameful display here on alex his (now defunct) blog. He did this as part of a half-arsed series of write-ups trying to educate everyone about graphics drivers... Starting of course with... those "scripts" called atomBIOS...

I of course responded with a blog entry myself. Here is a quote from it: "At no point do AtomBIOS functions come close to fitting the definition of script, at least not as we get them. It might start life as "scripts", but what we get is the bytecode, stuck into the ROM of our graphics cards or our mainboard." (libv, 2008-01-28)

At the same time, Alex and John were busy renaming the C code for r100-r4xx to "legacy", inferring both that these old graphics cards were too old to support, and that actual C code is the legacy way of doing things. "The warping of these two words make it impossible to deny: it is something wrong, that somehow has to be made to appear right." (libv, 2008-01-29) Rewriting an obvious truth... Amazing behaviour from someone who was supposed to be part of the open source community.

At no point did ATI provide us with any tools to alter these so-called scripts. They provided only the interpreter for the bytecode, the bare minimum of what it took for the rest of the world to actually use atomBIOS. There never was atomBIOS language documentation. There was no tooling for converting to and from the bytecode. There never was tooling to alter or create PCI BIOS images from said atomBIOS scripts. And no open source tool to flash said BIOSes to the hardware was available. There was an obscure atiflash utility doing the rounds on the internet, and that tool still exits today, but it is not even clear who the author is. It has to be ATI, but it is all very clandestine, i think it is safe to assume that some individuals at some card makers sometimes break their NDAs and release this.

The only tool for looking at atomBIOS is Matthias Hopfs excellent atomdis. He wrote this in the first few weeks of the RadeonHD project. This became a central tool for RadeonHD development, as this gave us the insight into how things fit together. Yes, we did have register documentation, but Mr. Bridgman had given us twice 500 pages of "this bit does that" (the same ones made public a few months later), in the hope that we would not see the forest through the trees. Atomdis, register docs, and the (then) most experienced display driver developer on the planet (by quite a margin) made the RadeonHD a viable driver in record time, and it gave ATI no way back from an open source driver. When we showed Mr. Bridgman the output of atomdis in september 2007, he was amazed just how readable its output was compared to ATI internal tools. So much for scripts eh?

I have to confess though that i convinced Matthias to hold off making atomdis public, as i knew that people like Dave Airlie would use it against us otherwise (as they ended up doing with everything else, they just did not get to use atomdis for this purpose as well). In Q2 2009. after the RadeonHD project was well and truly dead, Matthias brought up the topic again, and i wholeheartedly agreed to throw it out. ATI and the forkers had succeeded anyway, and this way we would give others a tool to potentially help them move on from atomBIOS. Sadly, not much has happened with this code since.

One major advantage of full openness is the ability to support future use cases that were unforeseeable at the time of hardware, code or documentation release. One such use-case is the today rather common (still) use of GPUs for cryptocurrency "mining". This was not a thing back in 2007-2009 when we were doing RadeonHD. It was not a thing when AMD created a GPGPU department out of a mix of ATI and new employees (this is the department that has been pushing out 3D ISA information ever since). It was also not considered when ATI stopped the flow of (non shader ISA) documentation back in Q1 2009 (coinciding with radeonHD dying). We only just got to the point of providing a 3d driver then, and never got near considering pushing for open firmware for Radeon GPUs. Fully open power management and fully open 3d engine firmware could mean that both could be optimised to provide a measurable boost to a very specific use-case, which cryptocurrency mining usually is. By retreating in its proprietary shell with the death of the RadeonHD driver, and by working on the blob based fig-leaf driver to keep the public from hating the fglrx driver as much, ATI has denied us the ability to gain those few 10ths of percents or even whole percents that there are likely to be gained from optimised support.

Today though, miners are mostly just altering the gpu and memory frequencies and voltages in their atomBIOS based data tables (not touching the function tables). They tend to use a binary only gui tool to edit those values. Miners also extensively use the rather horrible atiflash. That all seems very limited compared to what could have been if AMD had not lost the internal battle.

So much for history, as giving ATI the two fingered salute is actually more of an added bonus for me. I primarily wanted to play around with some newer ideas for tracing registers, and i wanted to see how much more effective working with capstone would make me. Since SPI chips are simple hardware, and SPI engines are just as trivial, ati spi engines seemed like an easy target. The fact that there is one version of atiflash (that made it out) that runs under linux, made this an obvious and fun project. So i spent the last month, on and off, instrumenting this binary, flexing my REing muscle.

The information i gleaned is now stuck into flashrom, a tool to which i have been contributing since 2007, from right before i joined SUSE. I even held a coreboot devroom at FOSDEM in 2010, and had a talk on how to RE BIOSes to figure out board specific flash enables. I then was on a long flashrom hiatus from 2010 til earlier this year, when i was solely focused on ARM. But a request for a quick board enable got me into flashrom again. Artificial barriers are made to be breached, and it is fun and rewarding to breach them, and board enables always were a quick fix.

The current changes are still in review at review.coreboot.org, but i have a github clone for those who want immediate and simple access to the complete tree.

To use the ati_spi programmer in flashrom you need to use:
./flashrom -pati_spi
and then specify the usual flashrom arguments and commands.

Current support is limited to the hardware i have in my hands today, namely Rx6xx, and only spans to that hardware that was obviously directly compatible to the Rx6xx SPI engine and GPIO block. This list of a whopping 182 devices includes:
* rx6xx: which are the radeon HD2xxx and HD3xxx series, released april 2007
* rx7xx: or HD4xxx, released june 2008.
* evergreen: or HD5xxx, released september 2009.
* northern island: HD6xxx series, released oktober 2010
* Lombok, part of the Southern Island family, release in january 2012.

The other Southern Islanders have some weird IO read hack that i need to go test.

I have just ordered 250eur worth of used cards that should extend support across all PCIE devices all the way through to Polaris. Vega is still out of reach, as that is prohibitively expensive for a project that is not going to generate any revenue for yours truly anyway (FYI, i am self-employed these days, and i now need to find a balance between fun, progress and actual revenue, and i can only do this sort of thing during downtime between customer projects). According to pci.ids, Vega 12 and 20 are not out yet, but they too will need specific changes when they come out. Having spent all that time instrumenting atiflash, I do have enough info to quickly cover the entire range.

One good thing about targetting AMD/ATI again is that I have been blackballed there since 2007 anyway, so i am not burning any bridges that were not already burned a decade ago \o/

If anyone wants to support this or related work, either as a donation, or as actually invoiced time, drop me an email. If any miners are interested in specifically targetting Vega, soon, or doing other interesting things with ATI hardware, I will be happy to set up a coinbase wallet. Get in touch.

Oh, and test out flashrom, and report back so we can update the device table to "Tested, OK" status, as there are currently 180 entries ranked as "Not-Tested", a number that is probably going to grow quite a bit in the next few weeks as hardware trickles in :)
link6 comments|post comment

The beginning of the end of the RadeonHD driver. [Feb. 13th, 2017|11:08 am]
Luc Verhaegen
[Tags|, , , , , , , , ]
[Current Location |Rumpelkammer]
[mood |Tired]
[music |Toto - Africa]

Soon it will be a decade since we started the RadeonHD driver, where we pushed ATI to a point of no return, got a proper C coded graphics driver and freely accessible documentation out. We all know just what happened to this in the end, and i will make a rather complete write-up spanning multiple blog entries over the following months. But while i was digging out backed up home directories for information, i came across this...

It is a copy of the content of an email i sent to an executive manager at SuSE/Novell, a textfile called bridgmans_games.txt. This was written in July 2008, after the RadeonHD project gained what was called "Executive oversight". After the executive had first hand seen several of John Bridgmans games, he asked me to provide him with a timeline of some of the games he played with us. The below explanation covers only things that i knew that this executive was not aware of, and it covers a year of RadeonHD development^Wstruggle, from July 2007 until april 2007. It took me quite a while to compile this, and it was a pretty tough task mentally, as it finally showed, unequivocally, just how we had been played all along. After this email was read by this executive, he and my department lead took me to lunch and told me to let this die out slowly, and to not make a fuss. Apparently, I should've counted myself lucky to see these sort of games being played this early on in my career.

This is the raw copy, and only the names of some people, who are not in the public eye have been redacted out (you know who you are), some other names were clarified. All changes are marked with [].

These are:
SuSE Executive manager: [EXEC]
SuSE technical project manager: [TPM]
AMD manager (from a different department than ATI): [AMDMAN]
AMD liaison: [SANTA] (as he was the one who handed me and Egbert Eich a 1 cubic meter box full of graphics cards ;))

[EXEC], i made a rather extensive write-up about the goings-on throughout
the whole project. I hope this will not intrude too much on your time,
please have a quick read through it, mark what you think is significant and
where you need actual facts (like emails that were sent around...) Of
course, this is all very subjective, but for most of this emails can be
provided to back things up (some things were said on the weekly technical
call only).

First some things that happened beforehand...

Before we came around with the radeonhd driver, there were two projects
going
already...

One was Dave Airlie who claimed he had a working driver for ATI Radeon R500
hardware. This was something he wrote during 2006, from information under
NDA, and this nda didn't allow publication. He spent a lot of time bashing
ATI for it, but the code was never seen, even when the NDA was partially
lifted later on.

The other was a project started in March 2007 by Nokia's Daniel Stone and
Ubuntu's [canonical's] Matthew Garreth. The avivo driver. This driver was a
driver separate from the -ati or -radeon drivers, under the GPL, and written
from scratch by tracing the BIOS and tracking register changes [(only the
latter was true)]. Matthew and Daniel were only active contributors for the
first few weeks and quickly lost interest. The bulk of the development was
taken over by Jerome Glisse after that.

Now... Here is where we encounter John [Bridgman]...

Halfway july, when we first got into contact with Bridgman, he suddenly
started bringing up AtomBIOS. When then also we got the first lowlevel
hardware spec, but when we asked for hardware details, how the different
blocks fitted together, we never got an answer as that information was said
to not be available. We also got our hands on some of the atombios
interpreter code, and a rudimentary piece of documentation explaining how to
handle the atombios bytecode. So Matthias [Hopf] created an atombios
disassembler to help us write up all the code for the different bits. And
while we got some further register information when we asked for it,
bridgman kept pushing atombios relentlessly.

This whining went on and on, until we, late august, decided to write up a
report of what problems we were seeing with atombios, both from an interface
as from an actual implementation point of view. We never got even a single
reply to this report, and we billed AMD 10 or so mandays, and [with]
bridgman apparently berated, as he never brought the issue up again for the
next few months... But the story of course didn't end there of course.

At the same time, we wanted to implement one function from atomBIOS at the
time: ASICInit. This function brings the hardware into a state where
modesetting can happen. It replaces a full int10 POST, which is the
standard, antique way of bringing up VGA on IBM hardware, and ASICInit
seemed like a big step forward. John organised a call with the BIOS/fglrx
people to explain to us what ASICInit offered and how we could use it. This
is the only time that Bridgman put us in touch with any ATI people directly.
The proceedings of the call were kind of amusing... After 10 minutes or so,
one of the ATI people said "for fglrx, we don't bother with ASICInit, we
just call the int10 POST". John then quickly stated that they might have to
end the call because apparently other people were wanting to use this
conference room. The call went on for at least half an hour longer, and john
from time to time stated this again. So whether there was truth to this or
not, we don't know, it was a rather amusing coincidence though, and we of
course never gained anything from the call.

Late august and early september, we were working relentlessly towards
getting our driver into a shape that could be exposed to the public.
[AMDMAN] had warned us that there was a big marketing thing planned for the
kernel summit in september, but we never were told any of this through our
partner directly. So we were working like maniacs on getting the driver in a
state so that we could present it at the X Developers Summit in Cambridge.

Early september, we were stuck on several issues because we didn't get any
relevant information from Bridgman. In a mail sent on september 3, [TPM]
made the following statement: "I'm not willing to fall down to Mr. B.'s mode
of working nor let us hold up by him. They might (or not) be trying to stop
the train - they will fail." It was very very clear then already that things
were not being played straight.

Bridgman at this point was begging to see the code, so we created a copy of
a (for us) working version, and handed this over on september the 3rd as
well. We got an extensive review of our driver on a very limited subset of
the hardware, and we were mainly bashed for producing broken modes (monitor
synced off). This had of course nothing to do with us using direct
programming, as this was some hardware limits [PLL] that we eventually had
to go and find ourselves. Bridgman never was able to help provide us with
suitable information on what the issue could be or what the right limits
were, but the fact that the issue wasn't to be found in atombios versus
direct programming didn't make him very happy.

So on the 5th of september, ATI went ahead with its marketing campaign, the
one which we weren't told about at all. They never really mentioned SUSE's
role in this, and Dave Airlie even made a blog entry stating how he and Alex
were the main actors on the X side. The SUSE role in all of this was
severely downplayed everywhere, to the point where it became borderline
insulting. It was also one of the first times where we really felt that
Bridgman maybe was working more closely with Dave and Alex than with us.

We then had to rush off to the X Developers Summit in Cambridge. While we
met ATIs Matthew Tippett and Bridgman beforehand, it was clear that our role
in this whole thing was being actively downplayed, and the attitude towards
egbert and me was predominantly hostile. The talk bridgman and Tippett gave
at XDS once again fully downplayed our effort with the driver. During our
introduction of the radeonHD driver, John Bridgman handed Dave Airlie a CD
with the register specs that went around the world, further reducing our
relevance there. John stated, quite noisily, in the middle of our
presentation, that he wanted Dave to be the first to receive this
documentation. Plus, it became clear that Bridgman was very close to Alex
Deucher.

The fact that we didn't catch all supper/dinner events ourselves worked
against us as well, as we were usually still hacking away feverishly at our
driver. We also had to leave early on the night of the big dinner, as we had
to come back to nürnberg so that we could catch the last two days of the
Labs conference the day after. This apparently was a mistake... We later
found a picture (http://flickr.com/photos/cysglyd/1371922101/) that has the
caption "avivo de-magicifying party". This shows Bridgman, Tippett, Deucher,
all the redhat and intel people in the same room, playing with the (then
competing) avivo driver. This picture was taken while we were on the plane
back to nürnberg. Another signal that, maybe, Mr Bridgman isn't every
committed to the radeonhd driver. Remarkably though, the main developer
behind the avivo driver, Jerome Glisse, is not included here. He was found
to be quite fond of the radeonhd driver and immediately moved on to
something else as his goal was being achieved by radeonhd now.

On monday the 17th, right before the release, ATI was throwing up hurdles...
We suddenly had to put AMD copyright statements on all our code, a
requirement never made for any AMD64 work which is as far as i understood
things also invalid under german copyright law. This was a tough nut for me
to swallow, as a lot of the code in radeonhd modesetting started life 5years
earlier in my unichrome driver. Then there was the fact that the atombios
header didn't come with an acceptable license and copyright statement, and a
similar situation for the atombios interpreter. The latter two gave Egbert a
few extra hours of work that night.

I contacted the phoronix.com owner (Michael Larabel) to talk to him about an
imminent driver release, and this is what he stated: "I am well aware of the
radeonHD driver release today through AMD and already have some articles in
the work for posting later today." The main open source graphics site had
already been given a story by some AMD people, and we were apparently not
supposed to be involved here. We managed to turn this article around there
and then, so that it painted a more correct picture of the situation. And
since then, we have been working very closely with Larabel to make sure that
our message gets out correctly.

The next few months seemed somewhat uneventful again. We worked hard on
making our users happy, on bringing our driver up from an initial
implementation to a full featured modesetting driver. We had to
painstakingly try to drag more information out of John, but mostly find
things out for ourselves. At this time the fact that Dave Airlie was under
NDA still was mentioned quite often in calls, and John explained that this
NDA situation was about to change. Bridgman also brought up that he had
started the procedure to hire somebody to help him with documentation work
so that the flow of information could be streamlined. We kind of assumed
that, from what we saw at XDS, this would be Alex Deucher, but we were never
told anything.

Matthias got in touch with AMDs GPGPU people through [AMDMAN], and we were
eventually (see later) able to get TCore code (which contains a lot of very
valuable information for us) out of this. Towards the end of oktober, i
found an article online about AMDs upcoming Rv670, and i pasted the link in
our radeonhd irc channel. John immediately fired off an email explaining
about the chipset, apologising for not telling us earlier. He repeated some
of his earlier promises of getting hardware sent out to us quicker. When the
hardware release happened, John was the person making statements to the open
source websites (messing up some things in the process), but [SANTA] was the
person who eventually sent us a board.

Suddenly, around the 20th of november, things started moving in the radeon
driver. Apparently Alex Deucher and Dave Airlie had been working together
since November 3rd to add support for r500 and r600 hardware to the radeon
driver. I eventually dug out a statement on fedora devel, where redhat guys,
on the last day of oktober, were actively refusing our driver from being
accepted. Dave Airlie stated the following: "Red Hat and Fedora are
contemplating the future wrt to AMD r5xx cards, all options are going to be
looked at, there may even be options that you don't know about yet.."

They used chunks of code from the avivo driver, chunks of code from the
radeonhd driver (and the bits where we spent ages finding out what to do),
and they implemented some parts of modesetting using AtomBIOS, just like
Bridgman always wanted it. On the same day (20th) Alex posted a blog entry
about being hired by ATI as an open source developer. Apparently, Bridgman
mentioned that Dave had found something when doing AtomBIOS on the weekly
phonecall beforehand. So Bridgman had been in close communication with Dave
for quite a while already.

Our relative silence and safe working ground was shattered. Suddenly it was
completely clear that Bridgman was playing a double game. As some diversion
mechanisms, John now suddenly provided us with the TCore code, and suddenly
gave us access to the AMD NDA website, and also told us on the phone that
Alex is not doing any Radeon work in his worktime and only does this in his
spare time. Surely we could not be against this, as surely we too would like
to see a stable and working radeon driver for r100-r400. He also suddenly
provided those bits of information Dave had been using in the radeon driver,
some of it we had been asking for before and never got an answer to then.

We quickly ramped up the development ourselves and got a 1.0.0 driver
release out about a week later. John in the meantime was expanding his
marketing horizon, he did an interview with the Beyond3D website (there is
of course no mention about us), and he started doing some online forums
(phoronix), replying to user posts there, providing his own views on
"certain" situations (he has since massively increased his time on that
forum).

One interesting result of the competing project is that suddenly we were
getting answers to questions we had been asking for a long time. An example
of such an issue is the card internal view of where the cards own memory
resides. We spent weeks asking around, not getting anywhere, and suddenly
the registers were used in the competing driver, and within hours, we got
the relevant information in emails from Mr Bridgman (November 17 and 20,
"Odds and Ends"). Bridgman later explained that Dave Airlie knew these
registers from his "previous r500 work", and that Dave asked Bridgman for
clearance for release, which he got, after which we also got informed about
these registers as well. The relevant commit message in the radeon driver
predates the email we received with the related information by many hours.

[AMDMAN] had put us in touch with the GPGPU people from AMD, and matthias
and one of the GPGPU people spent a lot of time emailing back and forth. But
suddenly, around the timeframe where everything else happened (competing
driver, alex getting hired), John suddenly conjured up the code that the
GPGPU people had all along: TCore. This signalled to us that John had caught
our plan to bypass him, and that he now took full control of the situation.
It took about a month before John made big online promises about how this
code could provide the basis for a DRM driver, and that it would become
available to all soon. We managed to confirm, in a direct call with both the
GPGPU people and Mr Bridgman that the GPGPU people had no idea about that
John intended to make this code fully public straigth away. The GPGPU people
assumed that Johns questions were fully aimed at handing us the code without
us getting tainted, not that John intended to hand this out publically
immediately. To this day, TCore has not surfaced publically, but we know
that several people inside the Xorg community have this code, and i
seriously doubt that all of those people are under NDA with AMD.

Bridgman also ramped up the marketing campaign. He did an interview with
Beyond3D.com on the 30th where he broadly smeared out the fact that a
community member was just hired to work with the community. John of course
completely overlooked the SUSE involvement in everything. An attempt to
rectify this with an interview of our own to match never materialised due to
the heavy time constraints we are under.

On the 4th of december, a user came to us asking what he should do with a
certain RS600 chipset he had. We had heard from John that this chip was not
relevant to us, as it was not supposed to be handled by our driver (the way
we remember the situation), but when we reported this to John, he claimed
that he thought that this hardware never shipped and that it therefor was
not relevant. The hardware of course did ship, to three different vendors,
and Egbert had to urgently add support for it in the I2C and memory
controller subsystems when users started complaining.

One very notable story of this time is how the bring-up of new hardware was
handled. I mentioned the Rv670 before, we still didn't get this hardware at
this point, as [SANTA] was still trying to get his hands on this. What we
did receive from [SANTA] on the 11th of december was the next generation
hardware, which needed a lot of bring-up work: rv620/rv635. This made us
hopeful that, for once, we could have at least basic support in our driver
on the same day the hardware got announced. But a month and a half later,
when this hardware was launched, John still hadn't provided any information.
I had quite a revealing email exchange with [SANTA] about this too, where he
wondered why John was stalling this. The first bit of information that was
useful to us was given to us on February the 9th, and we had to drag a lot
of the register level information out of John ourselves. Given the massive
changes to the hardware, and the induced complications, it of course took us
quite some time to get this work finished. And this fact was greedily abused
by John during the bring-up time and afterwards. But what he always
overlooks is that it took him close to two months to get us documentation to
use even atombios successfully.

The week of december the 11th is also where Alex was fully assimilated into
ATI. He of course didn't do anything much in his first week at AMD, but in
his second week he started working on the radeon driver again. In the weekly
call then John re-assured us that Alex was doing this work purely in his
spare time, that his task was helping us get the answers we needed. In all
fairness, Alex did provide us with register descriptions more directly than
John, but there was no way he was doing all this radeon driver work in his
spare time. But it would take John another month to admit it, at which time
he took Alex working on the radeon driver as an acquired right.

Bridgman now really started to spend a lot of time on phoronix.com. He
posted what i personally see as rather biased comparisons of the different
drivers out there, and he of course beat the drums heavily on atombios. This
is also the time where he promised the TCore drop.

Then games continued as usual for the next month or so, most of which are
already encompassed in previous paragraphs.

One interesting sidenote is that both Alex and John were heavy on rebranding
AtomBIOS. They actively used the word scripts for the call tables inside
atombios, and were actively labelling C modesetting code as legacy. Both
quite squarely go in against the nature of AtomBIOS versus C code.

Halfway february, discussions started to happen again about the RS690
hardware. Users were having problems. After a while, it became clear that
the RS690, all along, had a display block called DDIA capable of driving a
DVI digital signal. RS690 was considered to be long and fully supported, and
suddenly a major display block popped into life upon us. Bridgmans excuse
was the same as with the RS600; he thought this never would be used in the
first place and that therefor we weren't really supposed to know about this.

On the 23rd and 24th of February, we did FOSDEM. As usual, we had an X.org
Developers Room there, for which i did most of the running around. We worked
with Michael Larabel from phoronix to get the talks taped and online.
Bridgman gave us two surprises at FOSDEM... For one, he released 3D
documentation to the public, we learned about this just a few days before,
we even saw another phoronix statement about TCore being released there and
then, but this never surfaced.

We also learned, on friday evening, that the radeon driver was about to gain
Xvideo support for R5xx and up, through textured video code that alex had
been working on. Not only did they succeed in stealing the sunshine away
from the actual hard work (organising fosdem, finding out and implementing
bits that were never supposed to be used in the first place, etc), they gave
the users something quick and bling and showy, something we today still
think was provided by others inside AMD or generated by a shader compiler.
And this to the competing project.

At FOSDEM itself Bridgman of course was full of stories. One of the most
remarkable ones, which i overheard when on my knees clearing up the
developers room, was bridgman talking to the Phoronix guy and some community
members, stating that people at ATI actually had bets running on how long it
would take Dave Airlie to implement R5xx 3D support for the radeon driver.
He said this loudly, openly and with a lot of panache. But when this support
eventually took more than a month, i took this up with him on the phonecall,
leading of course to his usual nervous laughing and making up a bit of a
coverstory again.

Right before FOSDEM, Egbert had a one-on-one phonecall with Bridgman, hoping
to clear up some things. This is where we first learned that bridgman had
sold atombios big time to redhat, but i think you now know this even better
than i do, as i am pretty hazy on details there. Egbert, if i remember
correctly, on the very same day, had a phonecall with redhat's Kevin Martin
as well. But since nothing of this was put on mail and i was completely
swamped with organising FOSDEM, i have no real recollection of what came out
of that.

Alex then continued with his work on radeon, while being our only real
point of contact for any information. There were several instances where our
requests for information resulted in immediate commits to the radeon driver,
where issues were fixed or bits of functionality were added. Alex also ended
up adding RENDER acceleration to the radeon driver, and when Bridgman was in
Nuernberg, we clearly saw how Bridgman sold this to his management: alex was
working on bits that were meant to be ported directly to RadeonHD.

In march, we spent our time getting rv620/635 working, dragging information,
almost register per register out of our friends. We learned about the
release of RS780 at CEBIT, meaning that we had missed yet another
opportunity for same day support. John had clearly stated, at the time of
the rv620/635 launch that "integrated parts are the only place where we are
'officially' trying to have support in place at or very shortly after
launch".

And with that, we pretty much hit the time frame when you, [EXEC], got
involved...

One interesting kind of new development is Kgrids. Kgrids is some code
written by some ATI people that has some useful information for driver
development, especially useful for the DRM. John Bridgman told the phoronix
author 2-3 weeks ago already that he had this, and that he was planning to
release this immediately. The phoronix author immediately informed me, but
the release of this code never happened so far. Last thursday, Bridgman
brought up Kgrids in the weekly technical phonecall already... When asked
how long he knew about this, he admitted that they knew about this for
several weeks already, which makes me wonder why we weren't informed
earlier, and why we suddenly were informed then...


As said, the above, combined with what already was known to this executive, and the games he saw being played first hand from april 2008 throughout june 2008, marked the start of the end of the RadeonHD project.

I too more and more disconnected myself from development on this, with Egbert taking the brunt of the work. I instead spent more time on the next SuSE enterprise release, having fun doing something productive and with a future. Then, after FOSDEM 2009, when 24 people at the SuSE Nuernberg office were laid off, i was almost relieved to be amongst them.

Time flies.
link5 comments|post comment

The value of writing code and instigating change. [Apr. 23rd, 2015|04:30 pm]
Luc Verhaegen
[Tags|, , , , , , , , , ]
[Current Location |Rumpelkammer.]
[mood |draineddrained]
[music |Groovesalad]

You probably saw this phoronix article which references the log of the #dri-devel channel on freenode. This was an attempt to trash my work on lima and tamil, using my inability to get much in the way of code done, and my unwillingness to throw hackish tamil code over the hedge, against me. Let me take some time to explain some of that from my point of view.

Yes, I have lost traction.

Yes, i am not too motivated to work on cleaning up code at this time. I haven't been too motivated for anything much since FOSDEM 2014. I still have my sunxi kms code to fix up/clean up, and the same is true for the lima driver for mesa. It is also pretty telling that i started to write this blog entry more than two months ago and only now managed to post it.

Under the circumstances, though, everyone else would've given up about 2 to 3 years ago.

Due to my usual combination of stubbornness and actually sitting down and doing the work, I have personally kickstarted the whole open ARM GPU movement. This is the third enormous paradigm shift in Linux graphics that i have caused these past almost 12 years (after modesetting, and pushing ATI to a point of no return with an open source driver). All open ARM GPU projects were at least inspired by this, some actually use some lima code, others would simply not have happened if I hadn't done Lima and/or had kept my mouth shut at important junctions. This was not without sacrifices. Quite the opposite.

From March 2011 on, I have spent an insane amount of time on this. Codethink paid, all-in-all, 6 weeks of my time when i was between customer projects. Some of the very early work was done on Nokia time, as, thanks to our good friend Stephen Elop, operations were winding down severely in late 2011 to the point where mostly constant availability was needed. However, I could've used that extra free time in many other useful ways. When I got a job offer at SuSE in november 2011 (basically getting my old job back due to Matthias Hopf taking up a professorship), I turned it down so I could work on the highly important Lima work instead.

When Codethink ran into a cashflow issue in Oktober 2012 (which apparently was resolved quite successfully, as codethink has grown a lot more since then), I was shown the door. This wasn't too unreasonable a decision given my increasing disappointment with how lima was being treated, the customer projects i was being sent on, and the assumption that a high profile developer like me would have an easy time getting another employer. During the phonecall announcing my dismissal, I did however get told that ARM had already been informed about my dismissal, so that business relations between ARM and codethink could be resumed. I rather doubt that that is standard procedure for dismissing people.

The time after this has been pretty meagre. If you expected at least one of linaro, canonical, mozilla or jolla to support lima, you'd be pretty wrong. Similarly, i have not seen any credible attempt to support lima driver development on a consulting basis. Then there is that fact that applying to companies which use mali and which have no interest in using an open source driver for mali is completely out, as that would mean working on the ARM binary driver, which in turn would mean that i would no longer be allowed to work on lima. All other companies have not gotten with the times with respect to hiring policies, this ranges from demanding that people relocate to interviewing solely about OpenGL spec corners for supposed driver development positions. There was one case in this whole time which had a proper first level interview, and where everything seemed to be working out, only to go dead without a proper explanation after a while. I have since learned from two independent sources that my hiring was stopped due to politics involving ARM. Lima has done wonders making me totally unhirable.

In May 2013 i wrote another proposal to ARM for an open source strategy for Mali (the first was done in Q2 2011 as part of codethink), hoping that in the meantime sentiments had shifted enough and that the absence of an in-between company would make the difference this time round. It got the unofficial backing of some people inside ARM, but they just ended up getting their heads chewed off, and I hope that they didn't suffer too much for trying to do the right thing. The speed with which this proposal was rejected by Jem Davies (ARM MPD VP of Technology), and the undertone of the email reply he sent me, suggests that his mind was made up beforehand and that he wasn't too happy about my actions this time either. This is quite amazing, as one would expect anyone at the VP level of a major company to at least keep his options open. Between the way in which this proposal was rejected and the political pressure ARM seems to apply against Lima, Mr Davies his claims that ARM simply has no customer demand and no budget, and nothing more, are very hard to believe.

So after the polite applause at the end of my FOSDEM2014 talks, it hit me. That applause was the only support i was going to ever get for my work, and i was just going to continue to hit walls everywhere, both with lima and in life. And it would take another year until the next applause, if at all. To be absolutely honest, given the way the modesetting and ATI stories worked out, i should be used to that by now, however hard it still is. But this time round i had been (and of course still am) living with my fantastic and amazingly understanding girlfriend for several years, and she ended up supporting me through Q4 2013 and most of 2014 when my unemployment benefit ran out. This time round, my trailblazing wasn't backfiring on me alone, i was dragging someone else down with me, someone who deserves much better.

I ended up being barely able to write code throughout most of 2014, and focused entirely on linux-sunxi. The best way to block things out was rewriting the linux-sunxi wiki, and that wiki is now lightyears ahead of everything else out there, and an example for everyone else (like linux-exynos and linux-rockchip) for years to come. The few code changes i did make were always tiny and trivial. In august Siarhei Siamashka convinced me that a small display driver for sunxi for u-boot would be a good quick project, and i hoped that it would wet my appetite for proper code again. Sadly though, the fact that sunxi doesn't hide all chip details like the Raspberry Pi does (this was the target device for simplefb) meant that simplefb had to be (generically) extended, and this proved once and for all that simplefb is a total misnomer and that people had been kidding themselves all along (i seem to always run into things like this). The resulting showdown had about 1.5 times the number of emails as simplefb has lines of C code. Needless to say, this did not help my mood either.

In June 2014, a very good friend of mine, who has been a Qt consultant for ages, convinced me to try consulting again. It took until October before something suited came along. This project was pretty hopeless from the start, but it reinstated my faith in my problem solving skills and how valuable those really could be, both for a project, and, for a change, for myself. While i wasn't able to afford traveling to Bordeaux for XDC2014, i was able to afford FOSDEM2015 and I am paying for my own upkeep for the first time in a few years. Finally replacing my incredibly worn and battered probook is still out of the question though.

When i was putting together the FOSDEM Graphics DevRoom schedule around christmas, I noticed that there was a inexcuseably low amount of talks, and my fingers became itchy again. The consulting job had boosted morale sufficiently to do some code again and showing off some initial renders on Mali T series seemed doable within the 5 or so weeks left. It gave the FOSDEM graphics devroom another nice scoop, and filled in one of the many many gaps in the schedule. This time round i didn't kid myself that it would change the world or help boost my profile or anything. This time round, i was just going to prove to myself that i have learned a lot since doing Lima, and that i can do these sort of things still, with ease, while having fun doing so and not exerting myself too much. And that's exactly what I did, nothing more and nothing less.

The vultures are circling.

When Egbert Eich and I were brainstorming about freeing ATI back in April and May of 2007, I stated that I feared that certain "community" members would not accept me doing something this big, and I named 3 individuals by name. While I was initially alone with that view, we did decide that, in light of the shitthrowing contest around XGL and compiz, doing everything right for RadeonHD was absolutely paramount. This is why we did everything in the open, at least from the moment AMD allowed us to do so. Open docs, irc channel, public ml, as short a turn-around on patches as possible given our quality standards and the fact that ATI was not helping at all. I did have a really tough uphill battle convincing everyone that doing native C code was the only way, as, even with all the technical arguments for native code, I knew that my own reputation was at stake. I knew that if I had accepted AtomBIOS for basic modesetting, after only just having convinced the world that BIOS free modesetting was the only way forward, I would've personally been nailed to the cross by those same people.

From the start we knew that ATI was not going to go down without a fight on this one, and I feared that those "community" members would do many things to try to damage this project, but we did not anticipate AMD losing political control over ATI internally, nor did we anticipate the lack of scruples of those individuals. AMD needed this open source driver to be good, as the world hated fglrx to the extent that the ATI reputation was dragging AMDs chips and server market down, and AMD was initially very happy with our work on RadeonHD. Yet to our amazement, some ATI employees sided with those same "community" members, and together they worked on a fork of RadeonHD, but this time doing everything the ATI way, like fglrx.

The amount of misinformation and sometimes even downright slander in this whole story was amazing. Those individuals were actively working on remarketing RadeonHD as an evil Microsoft/Novell conspiracy and while the internet previously was shouting "death to fglrx", it ended up shouting "death to radeonhd". Everyone only seemed to want to join into the shouting, and nobody took a step back to analyze what was really going on. This was ATI & red hat vs AMD & SuSE, and it had absolutely nothing to do with creating the best possible open source driver for ATI hardware.

During all of this I was being internally reminded that SuSE is the good guy and that it doesn't stoop down to the level of the shitthrowers. Being who I am, I didn't always manage to restrain myself, but even today I feel that if I had been more vocal, i could've warded off some of the most inane nonsense that was spewed. When Novell clipped SuSEs wings even further after FOSDEM2009, i was up for the chop too, and I was relieved as i finally could get some distance between myself and this clusterfuck (that once was a free software dream). I also knew that my reputation was in tatters, and that if i had been more at liberty to debunk things, the damage there could've been limited.

The vultures had won, and no-one had called them out for their insidious and shameless behaviour. In fact, they felt empowered, free to use whatever nasty and underhand tactics against anything that doesn't suit them for political or egotistical reasons. This is why the hacking of the RadeonHD repository occured, and why the reaction of the X.org community was aimed against the messenger and victim, and not against the evil-doers (I was pretty certain before I sent that emial that it was either one or the other, i hadn't forseen that it would be both though).

So when the idea of Lima formed in March 2011, I no longer just feared that these people would react. I knew for a fact that they would be there, ready to pounce on the first misstep made. This fed my frustration with how Lima was being treated by Codethink, as I knew that, in the end, I would be the one paying the price again. Similarly, if my code was not good enough, these individuals would think nothing of it to step in, rewrite history, and then trash me for not having done corner X or Y, as that was part of their modus operandi when they destroyed RadeonHD.

So these last few years, i have been caught in a catch-22 situation. ARM GPUs are becoming free, and I have clearly achieved what i set out to achieve. The fact that I so badly misjudged both ARM and the level of support i would get should not take away from the fundamental changes that came from my labour. Logically and pragmatically, it should be pretty hard to fault me in this whole story, but this is not how this game works. No matter what fundamental difference I could've made with lima, no matter how large and clear my contributions and sacrifices would be, these people would still try to distort history and try their utmost best to defame me. And now that moment has come.

But there are a few fundamental differences this time round: I am able to respond as i see fit as there is no corporate structure to shut me up, and I truly have nothing left to lose.

What started this?

To put it short:
12:59 #dri-devel: < Jasper> the alternative is fund an open-source replacement, but touching
                  lima is not an option
Jasper St. Pierre is very vocal on #dri-devel, constantly coming up with questions and asking for help or guidance. But he and his employer Endless Mobile seem to have their mind set on using the ARM Mali DDK, ARMs binary driver. He is working on integrating the Mali DDK with things like wayland, and he is very active in getting help on doing so. He has been doing so for several months now.

The above irc quote is not what i initially responded to though, the following is however:
13:01 #dri-devel: < Jasper> lima is tainted
13:01 #dri-devel: < Jasper> there's still code somewhere on a certain person's hard disk he
                  won't release because he's mad about things and the other project contributors
                  all quit
13:01 #dri-devel: < Jasper> you know that
13:02 #dri-devel: < Jasper> i'm not touching lima with a ten foot pole.
This is pure unadulterated slander.

Lima is not in any way tainted. It is freshly written MIT code and I was never exposed to original ARM code. This statement is an outrageous lie, and it is amazing that anyone in the open source world would lie like that and expect to get away with it.

Secondly, I am not "mad about things". I am severely de-motivated, which is quite different. But even then, apart from me not producing much code, there had been no real indication to Jasper St Pierre until that point that this were the case. Also, "all" the contributors to Lima did not quit. I am still there, albeit not able to produce much in the way of code atm. Connor is in college now and just spent the summer interning for Intel writing a new IR for mesa (and was involved with Khronos SPIR-V). Ben Brewer only worked on Lima on codethink's time, and that was stopped halfway 2012. Those were the only major contributors to Lima. The second line Jasper said there was another baseless lie.

Here is another highly questionable statement from Mr. St Pierre:
13:05 #dri-devel: < Jasper> robclark, i think it's too late tbh -- any money we throw at lima
                  would be tainted i think
What Jasper probably meant is that HE is the one who is tainted by having worked with the ARM Mali DDK directly. But his quick fire statements at 13:01 definitely could've fooled anyone into something entirely different. Anyone who reads that sees "Lima is tainted because libv is a total asshole". This is how things worked during RadeonHD as well. Throw some halftruths out together, and let the internet noise machine do the rest.

Here is an example of what happens then:
13:11 #dri-devel: < EdB> Jasper: what about the open source driver that try to support the next
                  generation (I don't remember the name). Is it also tainted ?
13:19 #dri-devel: < EdB> I never heard of that lima tainted things before and I was surprised
Notice that Jasper made absolutely no effort to properly clarify his statements afterwards. This is where i came in to at least try to defuse this baseless shitthrowing.

When Jasper was confronted, his statements became even more, let's call it, varied. Suddenly, the reason for not using lima is stated here:
13:53 #dri-devel: < Jasper> Lima wasn't good enough in a performance evaluation and since it
                  showed no activity for a few years, we decided to pay for a DDK in order to
                  ship a product instead of working on Lima instead.
To me, that sounds like a pretty complete reason as to why Endless Mobile chose not to use Lima at the time. It does however not exclude trying to help further Lima at the same time, or later on, like now. But then the following statements came out of Jasper...
13:56 #dri-devel: < Jasper> libv, if we want to contribute to Lima, how can we do so?
13:57 #dri-devel: < Jasper> We'd obviously love an active open-source driver for Mali.
...
13:58 #dri-devel: < Jasper> I didn't see any way to contribute money through http://limadriver.org/
13:58 #dri-devel: < Jasper> Or have consulting done
Good to know... But then...
13:58 #dri-devel: < libv> Jasper: you or your company could've asked.
13:59 #dri-devel: < Jasper> My understanding was that we did.
13:59 #dri-devel: < Jasper> But that happened before I arrived.
13:59 #dri-devel: < libv> definitely not true.
13:59 #dri-devel: < Jasper> I was told we tried to reach out to the Lima project with no response.
                  I don't know how or what happened.
14:00 #dri-devel: < libv> i would remember such an extremely rare event
The supposed reaching out from EndlessM to lima seems pretty weird when taking the earlier statements into account, like at 13:53 and especially at 13:01. Why would anyone make those statements and then turn around and offer to help. What is Jasper hiding?

After that I couldn't keep my mouth shut and voiced my own frustration with how demotivated i am on doing the cleanup and release, and whined about some possible reasons as to why that is so. And then, suddenly...
14:52 #dri-devel: < Jasper> libv, so the reason we didn't contribute to Lima was because we didn't
                  imagine anything would come of it.
14:53 #dri-devel: < Jasper> It seems we were correct.
It seems that now Jasper his memory was refreshed, again, and that EndlessM never did reach out for another reason altogether...

A bit further down, Jasper lets the following slip:
14:57 #dri-devel: < Jasper> libv, I know about the radeonhd story. jrb has told me quite a lot.
14:58 #dri-devel: < Jasper> Jonathan Blandford. My boss at Endless, and my former boss at Red Hat.
And suddenly the whole thing becomes clear. In the private conversation that ensued Jasper explained that he is good friends with exactly the 3 persons named before, and that those 3 persons told him all he wanted to know about the RadeonHD project. It also seems that Jonathan Blandford was, in some way, involved with Red Hats decision to sign a pact with the ATI devil to produce a fork of a proper open source driver for AMD. These people simply never will go near anything I do, and would rather spend their time slandering yours truly than to actually contribute or provide support, and this is exactly what has been happening here too.

This brings us straight back to what was stated before anything else i quoted so far:
12:57 #dri-devel: < EdB> Jasper: I guess lima is to be avoided
...
12:58 #dri-devel: < Jasper> EdB, yeah, but that's not for legal reasons
Not for legal reasons indeed.

But the lies didn't end there. Next to coming up with more reasons to not contribute to lima, in that same private conversation Jasper "kindly" suggested that he'd continue Lima if only i throw my code over the wall. Didn't he state previously that Lima was tainted, with which i think he meant that he was tainted and couldn't work on lima?

Why?

At the time, i knew i was being played and bullshitted, but I couldn't make it stick on a single statement alone in the maelstrom that is IRC. It is only after rereading the irc log and putting Jaspers statements next to eachother that the real story becomes clear. You might feel that i am reading too much into this, and that i have deliberately taken Jaspers statements out of context to make him look bad. But I implore you to verify the above with the irc log, and you will see that i have left very little necessary context out. The above is Jaspers statements, with my commentary, put closely together, removing the noise (which is a really bad description for the rest of the irc discussion that went on at that time) and boosting the signal. Jasper statements are highly erratic, they make no sense when they are considered collectively as truths, and some are plain lies when considered individually.

Jasper has been spending a lot of time asking for help for supporting a binary driver. Nobody in the business does that. I guess that (former) red hat people are special. I still have not understood why it is that Red Hat is able to get away with so much while companies like canonical and SuSE get trashed so easily. But that is besides the point here; no-one questioned why Jasper is wasting so much time of open source developers on a binary driver. Jasper was indirectly asked why he was not using Lima, nothing more.

If Jasper had just stated that Endless Mobile decided to not use Lima because Endless Mobile thought Lima was not far enough along yet, and that Endless Mobile did not have the resources to do or fund all the necessary work still, then i think that that would've been an acceptable answer for EdB. It's not something i like hearing, but i am quite used to this by now. Crucially though, i would not have been in a position to complain.

Jasper instead went straight to trashing me and my work, with statements that can only be described as slander. When questioned, he then gave a series of mutually exclusive statements, which can only be explained as "making things up as he goes along", working very hard to mask the original reasons for not supporting Lima at all.

This is more than just "Lima is not ready", otherwise Jasper would have been comfortable sticking to that story. Jasper, his boss and Endless Mobile did not decide against Lima on any technical or logistical basis. This whole story never was about code at all. These people simply would do anything but support something that involves me, no matter how groundbreaking, necessary or worthy my work is. They would much rather trash and re-invent, and then trash some more...

It of course did not take long for the other vultures to join the frenzy... When the discussion on irc was long over, Daniel Stone made one attempt to revive it, to no avail. Then, a day later, someone anonymously informed phoronix, and Dave Airlie could then clearly be seen to try to stoke the fire, again, with limited success. I guess the fact that most of the phoronix users still only care about desktop hardware played to my advantage here (for once). It does very clearly show how these people work though, and I know that they will continue to try to play this card, trying hard to trigger another misstep from me or a cause a proper shitstorm on the web.

So what now.

Now I have a choice. I can wait until i am in the mood to clean up this code and produce something useful for public consumption, and in the meantime see my name and my work slandered. Or... If i throw my (nasty) code over the wall, someone will rename/rewrite it, mess up a lot of things, and trash me for not having done corner X or Y, so essentially slander me and my work and probably even erase my achievements from history, by using more of my work against me... And in the latter case i give people like Jasper and companies like Endless Mobile what they want, in spite of their contemptible actions and statements. Logically, there is only one conclusion possible in that constellation.

At the end of the day, i am still the author of this code and it was my time that I burned on it, my life that i wasted on it. I have no obligations to anyone, and am free to do with my code what i want. I cannot be forced into anything. I will therefor release my work, under my own terms, when i want to and when i feel ok doing so.

This whole incident did not exactly motivate me to spend time on cleaning code up and releasing it. At best, it confirmed my views on open source software and certain parts of the X.org community.

This game never was about code or about doing The Right Thing, and never will be.
link32 comments|post comment

FOSDEM and early Tamil driver work. [Feb. 18th, 2015|09:22 am]
Luc Verhaegen
[Tags|, , , , , , , , , , , ]
[Current Location |Rumpelkammer.]
[mood |Tired.]
[music |Dr. Toast - So Loud The Noise Of Stars]

FOSDEM 2015

It was another great FOSDEM this year. Even with their 5-10.000 attendants, the formula of being absolutely free, with limited sponsorship, and while only making small changes each year is an absolute winner. There is just no conference which comes even close to FOSDEM.

For those on ICE14 on Friday, the highspeed train from Frankfurt to Brussels south at 14:00, who were so nice to participate in my ad-hoc visitor count: 66. I counted 66 people, but i might have skipped a few as people were sometimes too engrossed in their laptops to hear me over their headphones. On a ~400 seat train, that's a pretty high number, and i never see the same level of geekiness on the Frankfurt to Brussels trains as on the Friday before FOSDEM. If it didn't sound like an organizational nightmare, it might have been a good idea to talk to DB and get a whole carriage reserved especially for FOSDEM goers.

With the Graphics DevRoom we returned to the K building this year, and i absolutely love the cozy 80 people classrooms we have there. With good airflow, freely movable tables, and an easy way to put in my powersockets, i have an easy time as a devroom organizer. While some speakers probably prefer bigger rooms to have a higher number of attendants, there is nothing like the more direct interaction of the rooms in the K buildings. With us sitting on the top floor, we also only had people who were very actively interested in the topics of the graphics devroom.

Despite the fact that FOSDEM has no equal, and anyone who does anything with open source software in the European Union should attend, i always have a very difficult time recruiting a full set of speakers for the graphics DevRoom. Perhaps the biggest reason for this is the fact that it is a free conference, and it lacks the elitarian status of a paid-for conference. Everyone can attend your talk, even people who do not work on the kernel or on graphics drivers, and the potential speaker might feel as if he needs to waste his time on people who are below his own perceived station. Another reason may be that it is harder to convince the beancounters to sponsor a visit to a free conference. In that case, if you live in the European Union and when you are paid to do open source software, you should be able to afford going to the must-visit FOSDEM by yourself.

As for next year, i am not sure whether there will be a graphics devroom again. Speaker count really was too low and perhaps it is time for another hiatus. Perhaps it is once again time to show people that talking in a devroom at FOSDEM truly is a privilege, and not to be taken for granted.

Tamil "Driver" talk.

My talk this year, or rather, my incoherent mumble finished off with a demo, was about showing my work on the ARM Mali Midgard GPUs. For those who had to endure it, my apologies for my ill-preparedness; i poured all my efforts into the demo (which was finished on Wednesday), and spent too much time doing devroom stuff (which ate Thursday) and of course in drinking up, ahem, the event that is FOSDEM (which ate the rest of the weekend). I will try to make up for it now in this blog post.

Current Tamil Status.

As some might remember, in September and October 2013, i did some preliminary work on the Mali T-series. I spent about 3 to 3.5 weeks building the infrastructure to capture the command stream and replay it. At the same time I also dug deep into the Mali binary driver to expose the binary shader compiler. These two feats gave me all the prerequisites for doing the job of reverse engineering the command stream of the Mali Midgard.

During the Christmas holidays of 2014 and in January 2015, i spent my time building a command stream parser. This is a huge improvement over my work on lima, where i only ended doing so later on in the process (while bringing up Q3A). As i built up the capabilities of this parser, i threw ever more complex GLES2 programs at it. A week before FOSDEM, my parser was correctly handling multiple draws and frames, uniforms, attributes, varyings and textures. Instead of having raw blobs of memory, i had C structs and tables, allowing me to easily see the differences between streams.

I then took the parsed result of my most complex test and slowly turned that into actual C code, using the shader binary produced by the binary compiler, and adding a trivial sequential memory allocator. I then added rotation into the mix, and this is the demo as seen on FOSDEM (and now uploaded to youtube).

All the big things are known.

For textures. I only have simple texture support at this time, no mipmapping nor cubemapping yet, and only RGB565 and RGBA32 are supported at this time. I also still have not figured out how to disable swizzling, instead i re-use the texture swizzling code from lima, the only place where I was able to re-use code in tamil. This missing knowledge is just some busywork, and a bit of coding away.

As for programs, while both the Mali Utgard (M-series) and Midgard (T-series) binary compilers output in a format called MBS (Mali Binary Shader), the contents of each file is significantly different. I had no option but to rewrite the MBS parser for tamil.

Instead of rewriting the vertex shaders binaries like ARMs binary driver does, i reorder the entries in the attribute descriptor table to match the order as described by the shader compiler output. This avoids adding a whole lot of logic to handle this correctly, even though MBS now describes which bits to alter in the binary. I still lay uniforms, attributes and varyings out by hand though, i similarly have only limited knowledge of typing at this point. This mostly is a bit of busywork of writing up the actual logic, and trying out a few different things.

I know only very few things about most of the GL state. Again, mostly busywork with a bit of testing and coding up the results. And while many values left and right are still magic, nothing big is hiding any more.

Unlike lima, i am refraining from building up more infrastructure (than necessary to show the demo) outside of Mesa. The next step really is writing up a mesa driver. Since my lima driver for mesa was already pretty advanced, i should be able to re-use a lot of the knowledge gained there, and perhaps some code.

The demo

The demo was shown on a Samsung ARM Chromebook, with a kernel and linux installation from september 2013 (when i brought up cs capture and exposed the shader compiler). The exynos KMS driver on this 3.4.0 kernel is terrible. It only accepts a few fixed resolutions (as if I never existed and modesetting wasn't a thing), and then panics when you even look at it. Try to leave X while using HDMI: panic. Try to use a KMS plane to display the resulting render: panic.

In the end, i used fbdev and memcpy the rendered frame over to the console. On this kernel, i cannot even disable the console, so some of the visible flashing is the console either being overwritten by or overwriting the copied render.

The youtube video shows a capture of the Chromebooks built in LCD, at 1280x720 on a 1366x768 display. At FOSDEM, i was lucky that the projector accepted the 1280x720 mode the exynos hdmi driver produced. My dumb HDMI->VGA converter (which makes the image darker) was willing to pass this through directly. I have a more intelligent HDMI->VGA adapter which also does scaling and which keeps colours nice, but that one just refused the output of the exynos driver. The video that was captured in our devroom probably does not show the demo correctly, as that should've been at 1024x768.

The demo shows 3 cubes rotating in front of the milky way. It is 4 different draws, using 3 different textures, and 3 different programs. These cubes currently rotate at 47fps, with the memcpy. During the talk, the chromebook slowed down progressively down to 26fps and even 21fps at one point, but i have not seen that behaviour before or since. I do know of an issue that makes the demo fail at frame 79530, which is 100% reproducible. I still need to track this down, it probably is an issue with my job handling code.

linux-exynos.org

With Lima and Tamil i am in a very unique position. Unlike on adreno, tegra or Videocore, i have to deal with many different SoCs. Apart from the difference in kernel GPU drivers, i also have to deal with differences in display drivers and run into a whole new world of hurts every time i move over to a new target device. The information for doing a proper linux installation on an android or chrome device is usually dispersed, not up to date, and not too good, and i get to do a lot of the legwork for myself every time, knowing full well that a lot of others have done so already but couldn't be bothered to document things (hence my role in the linux-sunxi community).

The ARM chromebook and its broken kms driver is much of the same. Last FOSDEM i complained how badly supported and documented the Samsung ARM chromebook is, despite its popularity, and appealed for more linux-sunxi style, SoC specific communities, especially since I, as a graphics driver developer, cannot go and spend as much time in each and every of the SoC projects as i have done with sunxi.

During the questions round of this talk, one guy in the audience asked what needed to be done to fix the SoC pain. At first i completely missed the question, upon which he went and rephrased his question. My answer was: provide the infrastructure, make some honest noise and people will come. Usually, when some asks such a question, nothing ever comes from it. But Merlijn "Wizzup" Wajer and his buddy S.J.R. "Swabbles" van Schaik really came through.

Today there is the linux-exynos.org wiki, the linux-exynos mailinglist, and the #linux-exynos irc channel. While the community is not as large as linux-sunxi, it is steadily growing. So if you own exynos based hardware, or if your company is basing a product on the exynos chipset, head to linux-exynos.org and help these guys out. Linux-exynos deserves your support.
link1 comment|post comment

PowerVR SGX code leaked. [Nov. 21st, 2014|11:22 pm]
Luc Verhaegen
[Tags|, , , , , , , , , ]
[Current Location |Rumpelkammer again, finally.]
[mood |Appalled at people, but hopeful.]
[music |Foo Fighters - The colour and the shape - Monkey wrench]

So someone leaked 2011 era PowerVR SGX microcode and user space... And now everyone is pissing themselves like a bunch of overexcited puppies...

I've been fed links from several sides now, and i cannot believe how short-sighted and irresponsible people are, including a few people who should know better.

STOP TELLING PEOPLE TO LOOK AT PROPRIETARY CODE.

Having gotten that out of the way, I am writing this blog to put everyone straight and stop the nonsense, and to calmly explain why this leak is not a good thing.

Before i go any further, IANAL, but i clearly do seem to tread much more carefully on these issues than most. As always, feel free to debunk what i write here in the comments, especially you actual lawyers, especially those lawyers in the .EU.

LIBV and the PVR.

Let me just, once again, state my position towards the PowerVR.

I have worked on the Nokia N9, primarily on the SGX kernel side (which is of course GPLed), but i also touched both the microcode and userspace. So I have seen the code, worked with and i am very much burned on it. Unless IMG itself gives me permission to do so, i am not allowed to contribute to any open source driver for the PowerVR. I personally also include the RGX, and not just SGX, in that list, as i believe that some things do remain the same. The same is true for Rob Clark, who worked with PowerVR when at Texas Instruments.

This is, however, not why i try to keep people from REing the PowerVR.

The reason why i tell people to stay away is because of the design of the PowerVR and its driver stack: PVR is heavily microcode driven, and this microcode is loaded through the kernel from userspace. The microcode communicates directly with the kernel through some shared structs, which change depending on build options. There are sometimes extensive changes to both the microcode, kernel and userspace code depending on the revision of the SGX, customer project and build options, and sometimes the whole stack is affected, from microcode to userspace. This makes the powervr a very unstable platform: change one component, and the whole house of cards comes tumbling down. A nightmare for system integrators, but also bad news for people looking to provide a free driver for this platform. As if the murderous release cycle of mobile hardware wasn't bad enough of a moving target already.

The logic behind me attempting to keep people away from REing the PowerVR is, at one end, the attempt to focus the available decent developers on more rewarding GPUs and to keep people from burning out on something as shaky as the PowerVR. On the other hand, by getting everyone working on the other GPUs, we are slowly forcing the whole market open, singling out Imagination Technologies. At one point, IMG will be forced to either do this work itself, and/or to directly support open sourcing themselves, or to remain the black sheep forever.

None of the above means that I am against an open source driver for PVR, quite the opposite, I just find it more productive to work on the other GPUs amd wait this one out.

Given their bad reputation with system integrators, their shaky driver/microcode design, and the fact that they are in a cut throat competition with ARM, Imagination Technologies actually has the most to gain from an open source driver. It would at least take some of the pain out of that shaky microcode/kernel/userspace combination, and make a lot of peoples lives a lot easier.

This is not open source software.

Just because someone leaked this code, it has not magically become free software.

It is still just as proprietary as before. You cannot use this code in any open source project, or at all, the license on it applies just as strongly as before. If you download it, or distribute it, or whatever other actions forbidden in the license, you are just as accountable as the other parties in the chain.

So for all you kiddies who now think "Great, finally an open driver for PowerVR, let's go hack our way into celebrity", you couldn't be more wrong. At best, you just tainted yourself.

But the repercussion go further than that. The simple fact that this code has been leaked has cast a very dark shadow on any future open source project that might involve the powervr. So be glad that we have been pretty good at dissuading people from wasting their time on powervr, and that this leak didn't end up spoiling many man-years of work.

Why? Well, let's say that there was an advanced and active PowerVR reverse engineering project. Naturally, the contributors would not be able to look at the leaked code. But it goes further than that. Say that you are the project maintainer of such a reverse engineered driver, how do you deal with patches that come in from now on? Are you sure that they are not taken more or less directly from the leaked driver? How do you prove this?

Your fun project just turned from a relatively straightforward REing project to a project where patches absolutely need to be signed-off, and where you need to establish some severe trust into your contributors. That's going to slow you down massively.

But even if you can manage to keep your code clean, the stigma will remain. Even if lawyers do not get involved, you will spend a lot of time preparing yourself for such an eventuality. Not a fun position to be in.

The manpower issue.

I know that any clued and motivated individual can achieve anything. I also know that really clued people, who are dedicated and can work structuredly are extremely rare and that their time is unbelievably valuable.

With the exception of Rob, who is allowed to spend some of his redhat time on the freedreno driver, none of the people working on the open ARM GPU drivers have any support. Working on such a long haul project without support either limits the amount of time available for it, or severely reduces the living standard of the person doing so, or anywhere between those extremes. If you then factor in that there are only a handful of people working on a handful of drivers, you get individuals spending several man-years mostly on their own for themselves.

If you are wondering why ARM GPU drivers are not moving faster, then this is why. There are just a limited few clued individuals who are doing this, and they are on their own, and they have been at it for years by now. Think of that the next time you want to ask "Is it done yet?".

This is why I tried to keep people from REing the powerVR, what little talent and stamina there is can be better put to use on more straightforward GPUs. We have a hard enough time as it is already.

Less work? More work!

If you think that this leaked driver takes away much of the hard work of reverse engineering and makes writing an open source driver easy, you couldn't be more wrong.

This leak means that here is no other option left apart from doing a full clean room. And there need to be very visible and fully transparent processes in place in a case like this. Your one man memory dumper/bit-poker/driver writer just became at least two persons. One of them gets to spend his time ogling bad code (which proprietary code usually ends up being), trying to make sense of it, and then trying to write extensive documentation about it (without being able to test his findings much). The other gets to write code from that documentation, but also little more. Both sides are very much forbidden to go back and forth between those two positions.

As if we ARM GPU driver developers didn't have enough frustration to deal with, and the PVR stack isn't bad enough already, the whole situation just got much much worse.

So for all those who think that now the floodgates are open for PowerVR, don't hold your breath. And to those who now suddenly want to create an open source driver for the powervr, i ask: you and what army?

For all those who are rinsing out their shoes ask yourself how many unsupported man-years you will honestly be able to dedicate to this, and whether there will be enough individuals who can honestly claim the same. Then pick your boring task, and then stick to it. Forever. And hope that the others also stick to their side of this bargain.

LOL, http://goo.gl/kbBEPX

What have we come to?

The leaked source code of a proprietary graphics driver is not something you should be spreading amongst your friends for "Lolz", especially not amongst your open source graphics driver developing friends.

I personally am not too bothered about the actual content of this one, the link names were clear about what it was, and I had seen it before. I was burned before, so i quickly delved in to verify that this was indeed SGX userspace. In some cases, with the links being posted publicly, i then quickly moved on to dissuade people from looking at it, for what limited success that could have had.

But what would i have done if this were Mali code, and the content was not clear from the link name? I got lucky here.

I am horrified about the lack of responsibility of a lot of people. These are not some cat pictures, or some nude celebrities. This is code that forbids people from writing graphics drivers.

But even if you haven't looked at this code yet, most of the damage has been done. A reverse engineered driver for powervr SGX will now probably never happen. Heck, i just got told that someone even went and posted the links to the powerVR REing mailinglist (which luckily has never seen much traffic). I wonder how that went:
Hi,
Are you the guys doing the open source driver for PowerVR SGX?
I have some proprietary code here that could help you speed things along.
Good luck!

So for the person who put this up on github: thank you so much. I hope that you at least didn't use your real name. I cannot imagine that any employer would want to hire anyone who acts this irresponsibly. Your inability to read licenses means that you cannot be trusted with either proprietary code or open source code, as you seem unable to distinguish between them. Well done.

The real culprit is of course LG, for crazily sticking the GPL on this. But because one party "accidentally" sticks a GPL on that doesn't make it GPL, and that doesn't suddenly give you the right to repeat the mistake.

Last months ISA release.

And now for something slightly different...

Just over a month ago, there was the announcement about Imagination Technologies' new SDK. Supposedly, at least according to the phoronix article, Imagination Technologies made the ISA (instruction set architecture) of the RGX available in it.

This was not true.

What was released was the assembly language for the PowerVR shaders, which then needs to be assembled by the IMG RGX assembler to provide the actual shader binaries. This is definitely not the ISA, and I do not know whether it was Alexandru Voica (an Imagination marketing guy who suddenly became active on the phoronix forums, and who i believe to be the originator of this story) or the author of the article on Phoronix who made this error. I do not think that this was bad intent though, just that something got lost in translation.

The release of the assembly language is very nice though. It makes it relatively straightforward to match the assembly to the machine code, and takes away most of the pain of ISA REing.

Despite the botched message, this was a big step forwards for ARM GPU makers; Imagination delivered what its customers need (in this case, the ability to manually tune some shaders), and in the process it also made it easier for potential REers to create an open source driver.

Looking forward.

Between the leak, the assembly release, and the market position Imagination Technologies is in, things are looking up though.

Whereas the leak made a credible open source reverse engineering project horribly impractical and very unlikely, it did remove some of the incentive for IMG to not support an open source project themselves. I doubt that IMG will now try to bullshit us with the inane patent excuse. The (not too credible) potential damage has been done here already now.

With the assembly language release, a lot of the inner workings and the optimization of the RGX shaders was also made public. So there too the barrier has disappeared.

Given the structure of the IMG graphics driver stack, system integrators have a limited level of satisfaction with IMG. I really doubt that this has improved too much since my Nokia days. Going open source now, by actively supporting some clued open source developers and by providing extensive NDA-free documentation, should not pose much of a legal or political challenge anymore, and could massively improve the perception of Imagination Technologies, and their hardware.

So go for it, IMG. No-one else is going to do this for you, and you can only gain from it!
link9 comments|post comment

ARM Mali Midgard, as featured on Anandtech. [Jul. 16th, 2014|12:40 pm]
Luc Verhaegen
[Tags|, , , , , , , , , , , , , , ]
[Current Location |Rumpelkammer]
[music |Arms and Sleepers - Antwerp]

Anandtech recently went all out on the ARM midgard architecture (Mali T series). This was quite astounding, as ARM MPD tends to be a pretty closed shop. The Anandtech coverage included an in-depth view of the Mali Midgard GPU, a (short) Q&A session with Jem Davies (the head honcho of ARM MPD, ARMs Media Processing Division, the part of ARM that develops the Mali and display and video engines) and a google hangout with Jem Davies a week later.

This set of articles does not seem like the sort of thing that ARM MPD would have initiated itself. Since both Imagination Technologies and NVidia did something similar months earlier, my feeling is that this was either initiated by Anand Lal Shimpi himself, or that this was requested by ARM marketing in response to the other articles.

Several interesting observations can be made from this though, especially from the answers (or sometimes, lack thereof) to the Q&A and google hangout sessions.

Hiding behind Linaro.

First off, Mr Davies still does not see an open source driver as a worthwhile endeavour for ARM MPD, and this is a position that hasn't changed since i started the lima driver, when my former employer went and talked to ARM management. Rumour has it that most of ARMs engineers both in MPD and other departments would like this to be different, and that Mr Davies is mostly alone with his views, but that's currently just hearsay. He himself states that there are only business reasons against an open source driver for the mali.

To give some weight to this, Mr Davies stated that he contributed to the linux kernel, and i called him out on that one, as i couldn't find any mention of him in a kernel git tree. It seems however that his contributions are from during the Bitkeeper days, and that the author trail on those changes probably got lost. But, having contributed to a project at one point or another is, to me, not proof that one actively supports the idea of open source software, at best it proves that adding support to the kernel for a given ARM device or subsystem was simply necessary at one point.

Mr Davies also talked about how ARM is investing a lot in linaro, as a proof of ARMs support of open source software. Linaro is a consortium to further linux on ARM, so per definition ARM plays a very big role in it. But it is not ARM MPD that drives linaro, it is ARM itself. So this is not proof of ARM MPD actively supporting open source software. Mr Davies did not claim differently, but this distinction should be made very clear in this context.

Then, linaro can be described as an industry consortium. For non-founding members of a consortium, such a construction is often used to park some less useful people while gaining the priviledge to claim involvement as and when desired. The difference to other consortiums is that most of the members come from a deeply embedded background, where the word "open" never was spoken before, and, magically, simply by having joined linaro, those deeply embedded companies now feel like they succesfully ticked the "open source" box on their marketing checklist. Several of linaros members are still having severe difficulty conforming to the GPL, but they still proudly wear the linaro badge as proof of their open source...ness?

As a prominent member of the sunxi community, I am most familiar with Allwinner, a small chinese cheap SoC designer. At the start of the year, we were seeing some solid signs of Allwinner opening up to our community directly. In March however, Allwinner joined linaro and people were hopeful that this meant that a new era of openness had started for Allwinner. As usual, I was the only cynical voice and i warned that this could mean that Allwinner now wouldn't see the need to further engage with us. Ever since, we haven't been able to reach our contacts inside Allwinner anymore, and even our requests for compliance with the GPL get ignored.

Linaro membership does not absolve from limited open source involvement or downright license violation, but for many members, this is exactly how it is used. Linaro seems to be a get-out-of-jail-free card for several of its members. Linaro membership does not need to prove anything, linaro membership even seems to have the opposite effect in several cases.

ARM driving linaro is simply no proof that ARM MPD supports open source software.

The patent excuse.

I am amazed that people still attempt to use this as an argument against open source graphics drivers.

Usually this is combined with the claim that open source drivers are exposing too much of the inner workings of the hardware. But this logic in itself states that the hardware is the problem, not the software. The hardware itself might or might not have patent issues, and it is just a matter of time before the owner of said breached patents will come a-knocking. At best, an open source driver might speed up the discovery of said issues, but the driver itself never is the cause, as the problems will have been there all along.

One would actually think that the Anandtech article about the midgard architecture would reveal more about the hardware, and trigger more litigation, than the lima driver could ever do, especially given how neatly packaged an in depth anandtech article is. Yet ARM MPD seemed to have had no issue with exposing this much information in their marketing blitz.

I also do not believe that patents are such a big issue. If graphics hardware patents were such big business, you would expect that an industry expert in graphics, especially one who is a dab hand at reverse engineering, would be contacted all the time to help expose potential patent issues. Yet i never have been contacted, and i know of no-one who ever has been.

Similarly. the first bits of lima code were made available 2.5 years ago, with bits trickling out slowly (much to my regret), and there are still several unknowns today. If lima played any role in patent disputes, you would again expect that i would be asked to support those looking to assert their patents. Again, nothing.

GPU Patents are just an excuse, nothing more.

When I was at SuSE, we freed ATI for AMD, and we never did hear that excuse. AMD wanted a solid open source strategy for ATI as ATI was not playing ball after the merger, and the bad publicity was hurting server (CPU) sales. Once the decision was made to go the open source route, patents suddenly were not an issue anymore. We did however have to deal with IP issues (or actually, AMD did - we made very sure we didn't get anything that wasn't supposed to be free), such as HDCP and media decoding, which ATI was not at liberty to make public. Given the very heated war that ATI and Nvidia fought at the time, and the huge amount of revenue in this market, you would think that ATI would be a very likely candidate for patent litigation, yet this never stood in the way of an open source driver.

There is another reason as to why patents are that popular an excuse. The words "troll" and "legal wrangling" are often sprinkled around as well so that images of shady deals being made by lawyers in smokey backrooms usually come to mind. Yet we never get to hear the details of patent cases, as even Mr Davies himself states that ARM is not making details available of ongoing cases. I also do not know of any public details on cases that have been closed already (not that i have actively looked - feel free to enlighten me). Patents are a perfect blanket excuse where proof apparently does not seem to be required.

We open source developers are very much aware of the damage that software patents do, and this makes the patent weapon perfect for deployment against those who support open source software. But there is a difference between software patents and the patent cases that ARM potentially has to deal with on the Mali. Yet we seem to have made patents our own kryptonite, and are way too easily lulled into backing off at the first mention of the word patent.

Patents are a poor excuse, as there is no direct relationship between an open source driver and the patent litigation around the hardware.

The Resources discussion.

As a hardware vendor (or IP provider) doing a free software driver never is for free. A lot of developer time does need to be invested, and this is an ongoing commitment. So yes, a viable open source driver for the Mali will consume some amount of resources.

Mr Davies states that MPD would have to incur this cost on its own, as MPD seems to be a completely separate unit and that further investment can only come from profit made within this group. In light of that information, I must apologize for ever having treated ARM and ARM MPD as one and the same with respect to this topic. I will from now on make it very clear that it is ARM MPD, and ARM MPD alone, that doesn't want an open source mali driver.

I do believe that Mr Davies his cost versus gain calculations are too direct and do not allow for secondary effects.

I also believe that an ongoing refusal to support an open source strategy for Mali will reflect badly on the sale of ARM processors and other IP, especially with ARM now pushing into the server market and getting into intel territory. The actions of ARM MPD do affect ARM itself, and vice versa. Admittedly, not as much as some with those that more closely tie the in-house GPU with the rest of the system, but that's far from an absolute lack of shared dependency and responsibility.

The Mali binary problem.

One person in the Q&A section asked why ARM isn't doing redistributable drivers like Nvidia does for the Tegra. Mr Davies answered that this was a good idea, and that linaro was doing something along those lines.

Today, ironically, I am the canonical source for mali-400 binaries. At the sunxi project, we got some binaries from the Cubietech people, built from code they received from allwinner, and the legal terms they were under did not prevent them from releasing the built binaries to the public. Around them (or at least, using the binaries as a separate git module) I built a small make based installation system which integrates with ARMs open source memory manager (UMP) and even included a quick GLES test from the lima tests. I stopped just short of debian packaging. The sunxi-mali repository, and the wiki tutorial that goes with it, now is used by many other projects (like for instance linux-rockchip) as their canonical source for (halfway usable) GPU support.

There are several severe problems with these binaries, which we have either fixed directly, have been working around or just have to live with. Direct fixes include adding missing library dependencies, and hollowing out a destructor function which made X complain. These are binary hacks. The xf86-video-fbturbo driver from Siarhei Siamashka works around the broken DRI2 buffer management, but it has to try to autodetect how to work around the issues, as it is differently broken on the different versions of the X11 binaries we have. Then there is the flaky coverage, as we only have binaries for a handful of kernel APIs, making it impossible to match them against all vendor provided SoC/device kernels. We also only have binaries for fbdev or X11, and sometimes for android, mostly for armhf, but not always... It's just one big mess, only slightly better than having nothing at all.

Much to our surprise, in oktober of last year, ARM MPD published a howto entry about setting up a working driver for mali midgard on the chromebook. It was a step in the right direction, but involved quite a bit off faff, and Connor Abbott (the brilliant teenager REing the mali shaders) had to go and pour things into a proper git repository so that it would be more immediately useful. Another bout of insane irony, as this laudable step in the right direction by ARM MPD ultimately left something to be desired.

ARM MPD is not like ATI, Nvidia, or even intel, qualcomm or broadcom. The Mali is built into many very different SoC families, and needs to be integrated with different display engines, 2D engines, media engines and memory/cache subsystems.

Even the distribution of drivers is different. From what i understand, mali drivers are handled as follows. The Mali licensees get the relevant and/or latest mali driver source code and access to some support from ARM MPD. The device makers, however, only rarely get their hands on source code themselves and usually have to make do with the binaries provided by the SoC vendor. Similarly, the device maker only rarely gets to deal with ARM MPD directly, and usually needs to deal with some proxy at the SoC vendor. This setup puts the responsibility of SoC integration squarely at the SoC vendor, and is well suited for the current mobile market: one image per device at release, and then almost no updates. But that market is changing with the likes of Cyanogenmod, and other markets are opening or are actively being opened by ARM, and those require a completely different mode of operation.

There is gap in Mali driver support that ARM MPDs model of driver delivery does not cater for today, and ARM MPD knows about this. But MPD is going to be fighting an upbill battle to try to correct this properly.

Binary solutions?

So how can ARM MPD try to tackle this problem?

Would ARM MPD keep the burden of making suitable binaries available solely with SoC vendors or device makers? Not likely as that is a pretty shakey affair that's actively hurting the mali ecosystem. SoCs for the mobile market have incredibly short lives, and SoC and device software support is so fragmented that these vendors would be responsible for backporting bugfixes to a very wide array of kernels and SoC versions. On top of that, those vendors would only support a limited subset of windowing systems, possibly even only android as this is their primary market. Then, they would have to set up the support infrastructure to appropriately deal with user queries and bug reports. Only very few vendors will end up even attempting to do this, and none are doing so today. In the end, any improvement at this end will bring no advantages to the mali brand or ARM MPD. If this path is kept, we will not move on from the abysmal situation we are in today, and the Mali will remain to be seen as a very fragmented product.

ARM MPD has little other option but to try to tackle this itself, directly, and it should do so more proactively than by hiding behind linaro. Unfortunately, to make any real headway here, this means providing binaries for every kernel driver interface, and the SoC vendor changes to those interfaces, on top of other bits of SoC specific integration. But this also means dealing with user support directly, and these users will of course spend half their time asking questions which should be aimed at the SoC vendor. How is ARM MPD going to convince SoC vendors to participate here? Or is ARM MPD going to maintain most of the SoC integration work themselves? Surely it will not keep the burden only at linaro, wasting the resources of the rest of ARM and of linaro partners?

ARM MPD just is in a totally different position than the ATIs and Nvidias of this world. Providing binaries that will satisfy a sufficient part of the need is going to be a huge drain on resources. Sure, MPD is not spending the same amount of resources on optimizing for specific setups and specific games like ATI or Nvidia are doing, but they will instead have to spend it on the different SoCs and devices out there. And that's before we start talking about different windowing infrastructure, beyond surfaceflinger, fbdev or X11. Think wayland, mir, even directFB, or any other special requirements that people tend to have for their embedded hardware.

At best, ARM MPD itself will manage to support surfaceflinger, fbdev and X11 on just a handful of popular devices. But how will ARM MPD know beforehand which devices are going to be popular? How will ARM MPD keep on making sure that the binaries match the available vendor or device kernel trees? Would MPD take the insane route of maintaining their own kernel repositories with a suitable mali kernel driver for those few chosen devices, and backporting changes from the real vendor trees instead? No way.

Attempting to solve this very MPD specific problem with only binaries, to any degree of success, is going to be a huge drain on MPD resources, and in the end, people will still not be satisfied. The problem will remain.

The only fitting solution is an open source driver. Of course, the Samsungs of this world will not ship their flagship phones with just an open source GPU driver in the next few years. But an open source driver will fundamentally solve the issues people currently have with Mali, the issues which fuel both the demand for fitting distributable binaries and for an open source driver. Only an open source driver can be flexible and cost-effective enough to fill that gap. Only an open source driver can get silicon vendors, device makers, solution creators and users chipping in, satisfying their own, very varied, needs.

Change is coming.

The ARM world is rapidly changing. Hardware review sites, which used to only review PC hardware, are more and more taking notice of what is happening in the mobile space. Companies that are still mostly stuck in embedded thinking are having to more and more act like PC hardware makers. The lack of sufficiently broad driver support is becoming a real issue, and one that cannot be solved easily or cheaply with a quick binary fix, especially for those who sell no silicon of their own.

The Mali marketing show on Anandtech tells us that things are looking up. The market is forcing ARM MPD to be more open, and MPD has to either sink or swim. The next step was demonstrated by yours truly and some other very enterprising individuals, and now both Nvidia and Broadcom are going all the way. It is just a matter of time before ARM MPD has to follow, as they need this more than their more progressive competitors.

To finish off, at the end of the Q&A session, someone asked: "Would free drivers gives greater value to the shareholders of ARM?". After a quick braindump, i concluded "Does ARMs lack of free drivers hurt shareholder value?" But we really should be stating "To what extent does ARMs lack of free drivers hurt shareholder value?".
link5 comments|post comment

The Raspberry Pi, en route to becoming a proper open platform. [Mar. 5th, 2014|05:32 pm]
Luc Verhaegen
[Tags|, , , , , , ]
[Current Location |Rumpelkammer]
[mood |happyhappy]
[music |Fatboy Slim - We've come a long way baby - Praise you]

Like most, I was taken by surprise last weekend, I never expected this to happen, at all.

Given that I was the one to poke a rather big hole in the Raspberry Pi image a year and a half ago, and since i have been playing a bit of a role in freeing ARM GPUs these last few years, I thought I'd say a few words on how I see things, and why I said what I said back then, and why I didn't say other things.

It has become a bit of a long read, but this it's a eventful story that spans about two years.

Getting acquainted.

I talked about the lima driver at linuxtag in may 2012. As my contract work wasn't going any where real, I spent two weeks of codethink time (well, it's not as if I ever did spent just 8h per day working on lima) on getting the next step working with lima, so I had something nice to demo at Linuxtag. During that bringup, I got asked to form a plan of attack for freeing the Raspberry Pi GPU, for a big potential customer. Just after my lima talk at the conference, I downloaded some code and images through the linuxtag wifi, and set about finding the shader compiler on the train on the way back.

I am not one for big micro-managed teams where constant communication is required. I am very big on structure and on finding natural boundaries (which is why you have the term modesetting and the structured approach to developing display drivers today). I tend to split up a massive task along those natural boundaries, and then have clued folks take full control and responsibility of those big tough subtasks. This is why I split the massive task of REing a GPU between the command stream side and the shader compiler. This is the plan of attack that I had formed in the first half of 2011 for Mali (which we are still sticking to today), and I was of course looking to repeat that for the RPi.

On the train, I disassembled glCompileShader from the VideoCore userspace binary, and found the code to be doing surprisingly little. It quickly went down to some routines which were used by pretty much all gl and egl calls. And those lower routines were basically taking in some ids and some data, and then passing it to the kernel. A look at the kernel code then told me that there was nothing but passing data through happening at that side...

There was nothing real going on, as all the nifty bits were running somewhere else.

In the next few days, I talked to some advanced RPi users on IRC, and we figured out that even the bootloader runs on the Videocore and that that brings up the ARM core. A look at the 3 different binary blobs, for 3 different memory divisions between the ARM and the VideoCore, revealed that they were raw blobs, running directly on the videocore. Strings were very clearly visible, and what was immediately clear is that it was mostly differences in addresses between the 3 blobs. Apart from the addresses, nothing was immediately apparent, apart from the fact that even display code was done by the Videocore. I confirmed with Ben Brewer, who was then working on the shaders for Lima, and who has a processor design background.

The news therefor wasn't good. The Raspberry Pi is a completely closed system with a massive black box pulling all the strings. But at least it is consistently closed, and there is only limited scope for making userspace and 'The Blob' getting out of sync, unlike the PowerVR, where userspace, kernel and microcode are almost impossible to keep in sync.

So I wrote up the proposal for the potential customer (you know who you are), basically a few manmonths of busywork (my optimistic estimate doubled, and then doubled again, as I never do manage to keep my own optimistic timelines) to free the userspace shim, and a potential month for Ben for poking at the videocore blobs. Of course, I never heard back from codethink sales, which was expected with news that was this bad.

I decided to stay silent about the Raspberry Pi being such a closed system, at least for a few weeks. For once, this customer was trying to do The Right Thing by talking to the right people, instead of just making big statements, no matter what damage they cause or what morals they breach. I ended up being quite busy in the next few months and I kind of forgot about making some noise. This came back to haunt me later on.

The noise.

So on oktober 24th of 2012, the big announcement came. Here is the excerpt that I find striking:
"[...] the Raspberry Pi is the first ARM-based multimedia SoC with
fully-functional, vendor-provided (as opposed to partial, reverse engineered)
fully open-source drivers, and that Broadcom is the first vendor to open their
mobile GPU drivers up in this way. We at the Raspberry Pi Foundation hope to
see others follow."
While the text of the announcement judiciously talks about "userland" and "VideoCore driver code which runs on the ARM", it all goes massively downhill with the above excerpt. Together wit the massive cheering coming from the seemingly very religious RPi community, the fact that the RPis SoC was a massively closed system was completely drowned out.

Sure, this release was a very good step in the right direction. It allowed people to port and properly maintain the RPi userspace drivers, and took away a lot of the overhead for integration. But the above statement very deliberately brushed the truth about the BCM2835 SoC under the carpet, and then went on to brashly call for other vendors to follow suit, even though those others had chosen very different paths in their system design, and did not depend on a massive all-controlling black box.

I was appalled. Why was this message so deliberately crafted in what should be a very open project? How could people be so shortsighted and not see the truth, even with the sourcecode available?

What was even worse was the secondary message here. To me, it stated "we are perfectly happy with the big binary blob pulling the strings in the background". And with their call to other vendors, they pretty much told them: "keep the real work closed, but create an artificial shim to aid porting!". Not good.

So I went and talked to the other guys on the #lima channel on irc. The feeling amongst the folks in our channel was pretty uniform one of disgust. At first glance, this post looked as a clear and loud message to support open drivers, it only looked like that on the absolute surface. Anyone who would dig slightly deeper would soon see the truth, and the message would turn into "Keep the blob guys!".

It was clear that this message from the RPi foundation was not helping the cause of freeing ARM GPUs at all. So I decided to react to this announcement.

The shouting

So I decided to go post in the broadcom forums, and this is what I wrote:
Erm… Isn’t all the magic in the videocore blob? Isn’t the userland code you
just made available the simple shim that passes messages and data back and forth
to the huge blob running on the highly proprietary videocore dsp?

– the developer of the lima driver.
Given the specific way in which the original RPI foundation announcement was written, i had expected all from the RPI foundation itself to know quite clearly that this was indeed just the shim driver. The reminder of me being the lima driver developer, should've taken away any doubt about me actually knowing what i was talking about. But sadly, these assumptions were proven quite wrong when Liz Upton replied:
No.

There’s some microcode in the Videocore – not something you should confuse with an
ARM-side blob, which could actually prevent you from understanding or modifying
anything that your computer does. That microcode is effectively firmware.
She really had no idea to what extent the videocore was running the show, and then happily went and argued with someone whom most people would label an industry expert. Quite astounding.

Things of course went further downhill from there, with several RPI users showing themselves from their best side. Although I did like the comment about ATI and ATOMBIOS, some people at least hadn't forgotten that nasty story.

All-in-all, this was truly astounding stuff, and it didn't help my feeling that the RPI foundation was not really intending to do The Right Thing, but instead was more about making noise, under the guise of marketing. None of this was helping ARM GPUs or ARM userspace blobs in any way.

More shouting

What happened next was also bad. Instead of sticking to the facts, Dave Airlie went and posted this blog entry, reducing himself to the level of Miss Upton.

A few excerpts:
"Why is this not like other firmware (AMD/NVIDIA etc)?
The firmware we ship on AMD and nvidia via nouveau isn't directly controlling the GPU
shader cores. It mostly does ancillary tasks like power management and CPU offloading.
There are some firmwares for video decoding that would start to fall into the same
category as this stuff. So if you want to add a new 3D feature to the AMD gpu driver
you can just write code to do it, not so with the rPI driver stack."
"Will this mean the broadcom kernel driver will get merged?
No.

This is like Ethernet cards with TCP offload, where the full TCP/IP stack is run on the
Ethernet card firmware. These cards seem like a good plan until you find bugs in their
firmware stack or find out their TCP/IP implementation isn't actually any good. The same
problem will occur with this. I would take bets the GLES implementation sucks, because
they all do, but the whole point of open sourcing something is to allow other to improve
it something that can't be done in this case."
Amazing stuff.

First of all, with the videocore being responsible for booting the bcm2835, and the bcm2835 already being a supported platform in the linux kernel (as of version 3.7), all the damage had been done already. Refusing yet another tiny message passing driver, which has a massive user-base and which will see a lot of testing, then is rather short-sighted. Especially since this would have made it much easier for the massive RPI userbase to use the upstream kernel.

Then there is the fact that this supposed kernel driver would not be a drm driver. It's simply not up to the self-appointed drm maintainer to either accept or refuse this.

And to finish off, a few years ago, Dave forked RadeonHD driver code to create a driver that did things the ATI way (read: much less free, much more dependent on bios bytecode, and with many other corners being implemented the broken ATI way), wasted loads of AMD money, stopped register documentation from coming out, and generally made sure that fglrx still rules supreme today. And all of this for just "marketing reasons", namely the ability to make trump SuSE with noise. With a history like that, you just cannot go and claim the moral high ground on anything anymore.

Like I've stated before, open source software is about making noise, and Dave his blog entry was nothing more and nothing less. Noise breeds more noise in our parts. This is why I decided to not provide a full and proper analysis of the situation back then, as we had lowered ourselves to the level that the RPI foundation had chosen, and nothing I could have said would've improved on that.

Redemption

I received an email from Eben Upton last friday, where he pointed out the big news. I replied that I would have to take a thorough look first, but then also stated that I didn't expect Eben to email me if this hadn't been the real thing. I then congratulated him extensively.

And congratulations really are in order here.

The Raspberry PI is a global sales phenomenon. It created a whole new market, a space where devices like the Cubieboard and Olimex boards also are in now. It made ARM development boards accessible and affordable, and put a linux on ARM in the hands of 2.5 million people. It is so big that the original goal of the Raspberry Pi, namely that of education, is kind of drowned out. But just the fact that so many of these devices were sold already, will have a bigger educational impact than any direct action towards that goal. This gives the RPI foundation a massive amount of power, so much so, that even the most closed SoC around is being opened now.

But in Oktober of 2012, my understanding was that the RPI foundation wasn't interested in wielding that power to reach those goals which I and many others hold dear. And I was really surprised when it now was revealed that they did, as I had personally given up on this ever happening, and I had assumed that the RPI foundation was not intending to go all the way.

What's there?

After the email from Eben, I joined the #raspberrypi-internals channel on freenode to ask the guys who are REing the VideoCore, to get an expert opinion from those actually working on the hardware.

So what has appeared:
* A user manual for the 3D core.
* Some sample code for a different SoC, but code which which runs on the ARM core and not on the videocore.
* This sample code includes some interesting headers which helps the guys who are REing the Videocore.
* There's a big promise of releasing more about the Videocore and at least providing a properly free bootloader.

These GPU docs and code not only means that Broadcom has beaten ARM, Qualcomm, Nvidia, Vivante and Imagination technologies to the post, it also makes broadcom second only to Intel. (yes, in front of AMD, or should I say ATI, as ATI has run most of the show since 2008).

Then there is the extra info on the videocore and the promise of a fully free bootloader. Yes, there still is the massive dependance on the VideoCore for doing all sorts of important SoC things, but releasing this information takes time, especially since this was not part of the original SoC release process and it has to be made up for afterwards. The future is looking bright for this SoC though, and we really might get to a point where the heavily VideoCore based BCM2835 SoC becomes one of the most open SoCs around.

Today though, the BCM2835 still doesn't hold a candle to the likes of the Allwinner A10 with regards to openness. But the mid to long term difference is that most of Allwinners openness so far was accidental (they are just now starting to directly cooperate with the linux-sunxi community), and Allwinner doesn't own all the IP used in their SoC (ARM owns the GPU for instance, and it is being a big old embedded dinosaur about it too). The RPI SoC not only has very active backing from the SoC vendor, that SoC vendor also happens to be the full owner of the IP at the same time.

The RPI future looks really bright!

Whining.

I do not like the 10k bounty on getting Q3A going with the freshly released code. I do not think this is the best way to get a solid gpu driver out, as it mostly encourages a single person to make a quick and dirty port of the freshly released code. I would've preferred to have seen someone from the RPI foundation create a kanban with clearly defined goals, and then let the community work off the different work items, after which those work-items are graded and rewarded. But then, it's the RPI foundations money, and this bounty is a positive action overall.

I am more worried about something else. With the bounty and with the promise of a free bootloader, the crazy guys who are REing the VideoCore get demotivated twice. This 10k bounty rules them out, as it calls for someone to do a quick and dirty hack, and not for long hard labour towards The Right Thing. The promise of a free bootloader might make their current work superfluous, and has the potential to halt REing work altogether. These guys are working on something which is or was at least an order of magnitude harder than what the normal GPU REing projects have or had to deal with. I truly hope that they get some direct encouragement and support from the RPI foundation, and that both parties work together on getting the rest of the VideoCore free.

All in all, this Broadcom release is the best news I have heard since I started on the open ARM GPU path, it actually is the best news I've had since AMD accepted our proposal to free the ATI Radeon (back in june 2007). This release fully makes up for the bad communication of Oktober 2012, and has opened the door to making the BCM2835 the most free SoC out there.

So to Eben and the rest of the guys from the RPI Foundation: Well done! You made us all very happy and proud.
link4 comments|post comment

navigation
[ viewing | most recent entries ]
[ go | earlier ]
